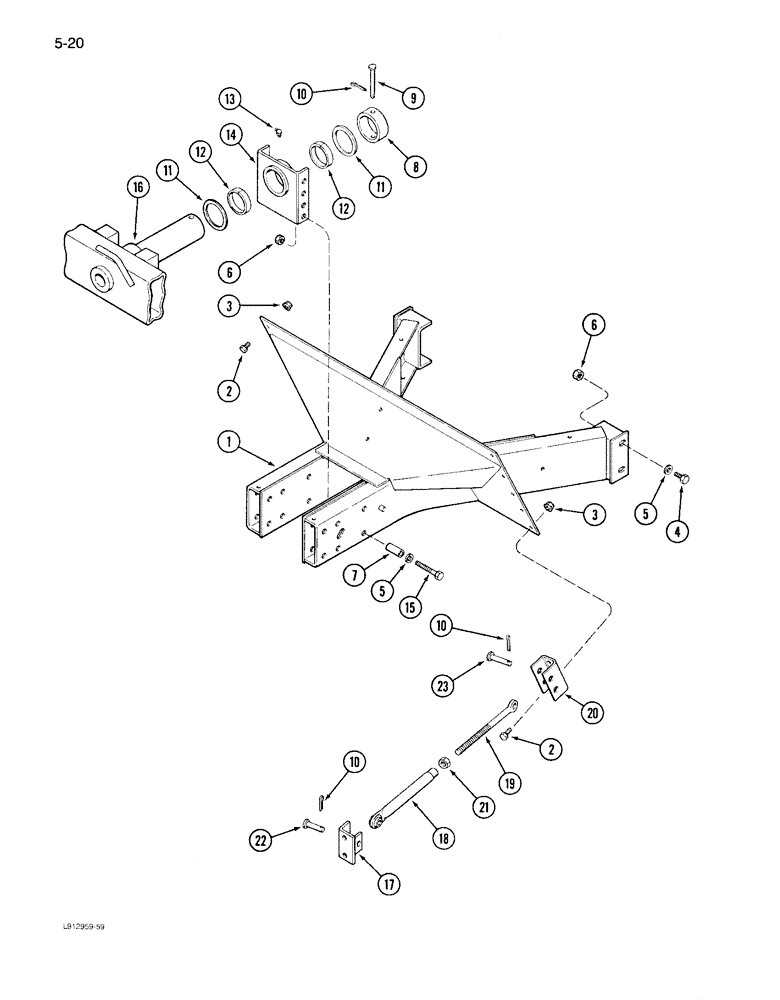

Запчасти Case IH 1640 (5-20) - STEERING AXLE SUPPORT, ALL ADJUSTABLE AXLES (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
1308816C2
SUPPORT
ASSEMBLY - steering axle
1шт.
1
1315446C2
SUPPORT
ASSEMBLY - steering axle, heavy duty (Australia only)
1шт.
2
426-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
- hex, 1/2 NC x 1 inch, Grade 8
10шт.
3
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex, 1/2 inch NC, Grade 8
10шт.
4
426-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8
- hex, 3/4 NC x 1-1/2 inch, Grade 8
4шт.
5
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
8шт.
6
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
- hex, 3/4 inch NC, Grade 8
8шт.
7
177748C1
SPACER
- support, 13/16 x 1-1/4 x 2-13/16 inch
12шт.
8
182795C1
BUSHING,101.68mm ID x 127mm OD x 44.7mm L
- axle pivot
1шт.
9
28147R1
HEADED PIN,3/4" x 5 1/2"
PIN - headed, 3/4 x 5-1/2 inch
1шт.
10
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
4шт.
11
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
- axle pivot
2шт.
13
219-17
LUBE NIPPLE,3/16" NPTF
FITTING - grease, 3/16" drive type
2шт.
14
182792C93
SUPPORT ASSY.
SUPPORT - pivot, front
1шт.
15
326-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
4шт.
16
REF
INSTRUCTION
AXLE - steering (See Figure 5-22)
1шт.
17
183494C1
SUPPORT ASSY.
BRACKET - rear
2шт.
Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.
1шт.
18
181444C1
TIE-ROD,1" - 8
ROD - rear
2шт.
Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.
1шт.
19
181442C3
EYEBOLT,1" - 8 x 381mm
ROD - front
2шт.
Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.
1шт.
20
1541603C1
SUPPORT
- front (Replaces 183491C1)
2шт.
Used with 92 to 120 inch and 108 to 120 inch adjustable axles only.
1шт.
21
425-1016
NUT,1"-8, G5
- hex, 1 inch NC
2шт.
22
23313R1
HEADED PIN,7/8" x 3 1/2"
PIN, HEADED, 7/8" x 3 1/2"
2шт.
23
23729R1
HEADED PIN,22.23mm OD x 76.2mm L
PIN - headed, 7/8 x 3 inch
2шт.
Выбрано товаров: 28
