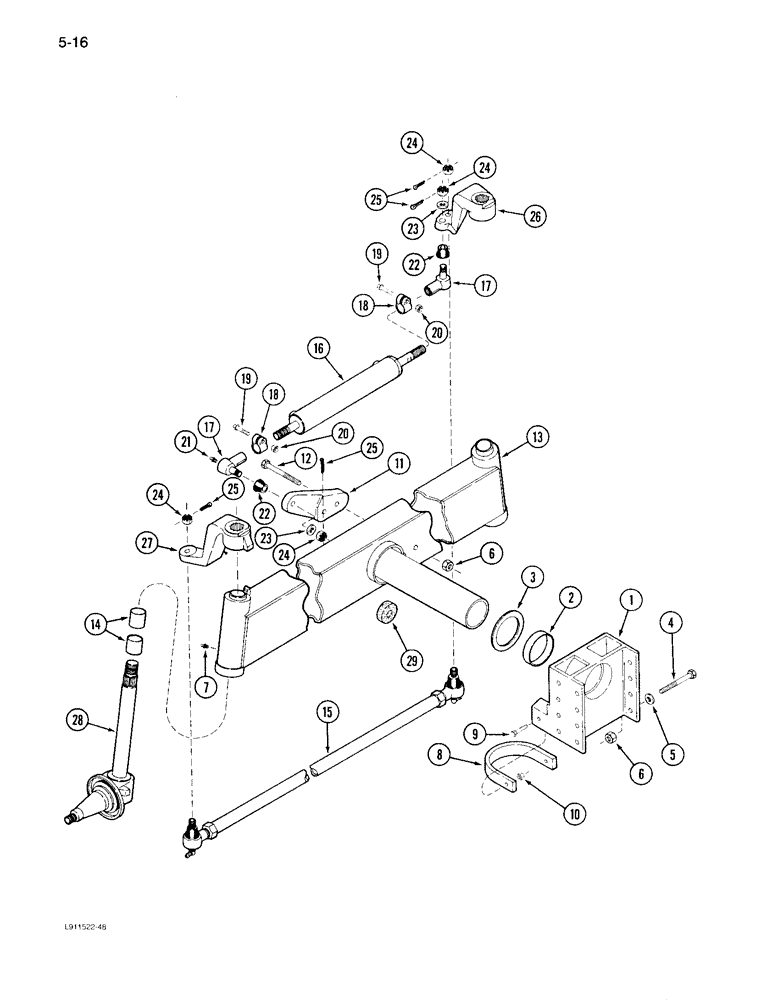

Запчасти Case IH 1640 (5-16) - STEERING AXLE, NONADJUSTABLE AXLE (04) - STEERING

1

177749C92

SUPPORT ASSY.

SUPPORT - axle pivot

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- axle pivot

1шт.

4

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

8шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4inch NC, Grade 8

10шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" drive type

2шт.

8

196084C2

CHANNEL

STRAP - tow

1шт.

9

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

10

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex lock, 5/8 inch NC, Grade 8

2шт.

11

193917C1

ANCHOR

- steering cylinder

1шт.

12

113-723

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

2шт.

13

182798C2

AXLE

- steering, grain combine, Includes: Ref. 14

1шт.

13

1302521C2

AXLE

- steering, corn combine, Includes: Ref. 14

1шт.

14

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- spindle

4шт.

15

REF

INSTRUCTION

ROD ASSEMBLY - tie (See Figure 5-18)

1шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-12)

1шт.

17

186796C1

BALL JOINT

SOCKET - steering cylinder end, Includes: Ref. 18 - 21

2шт.

18

384371R1

CLAMP

- socket, Includes: Ref. 19 - 20

1шт.

19

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

20

131-667

NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 inch NC

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

22

382562R1

SEAL

- socket end

2шт.

23

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

24

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

25

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

26

193911C3

ARM

- steering, left

1шт.

27

193912C3

STEERING ARM

- steering, right

1шт.

28

REF

INSTRUCTION

KNUCKLE - steering (See Figure 5-28)

1шт.

29

167955C2

SEAL

- steering hose

1шт.
