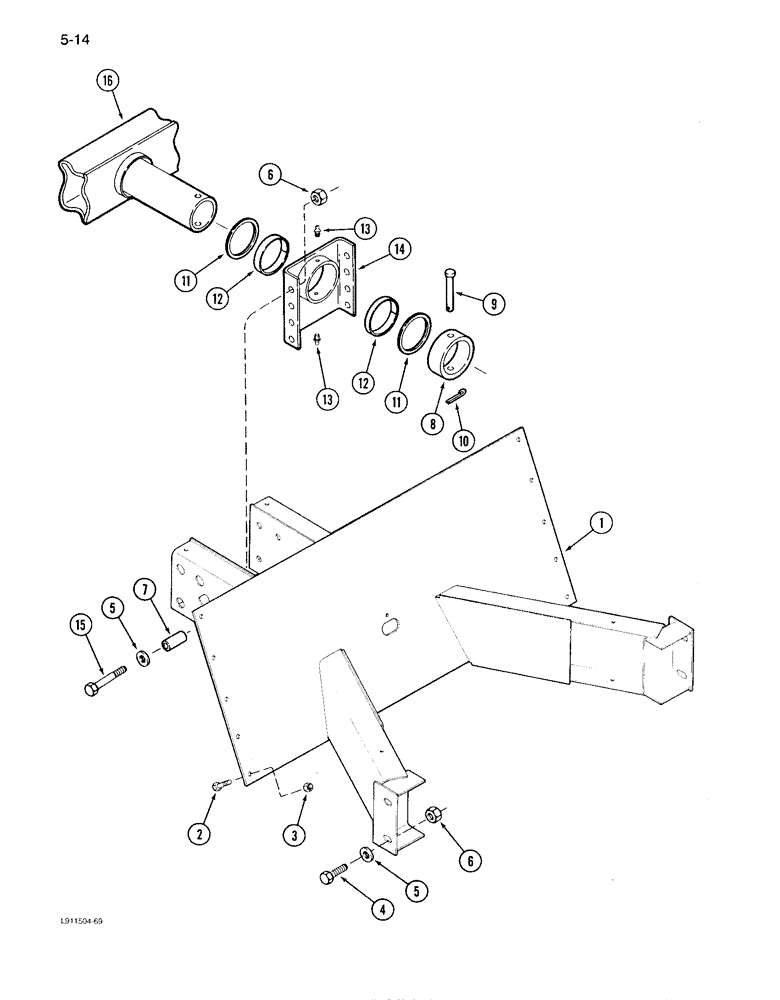

Запчасти Case IH 1640 (5-14) - STEERING AXLE SUPPORT, NONADJUSTABLE AXLE (04) - STEERING

1

1308816C2

SUPPORT

ASSEMBLY - steering axle

1шт.

1

1315446C2

SUPPORT

ASSEMBLY - steering axle, heavy duty (Australia only)

1шт.

2

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

10шт.

3

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, Grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

- hex, 3/4 inch NC, Grade 8

8шт.

7

177748C1

SPACER

- support, 13/16 x 1-1/4 x 2-13/16 inch

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

9

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN - headed, 3/4 x 5-1/2 inch

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- axle pivot

2шт.

12

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 3/16 inch drive type

2шт.

14

182792C93

SUPPORT ASSY.

SUPPORT - front pivot

1шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE - steering (See Figure 5-16)

1шт.
