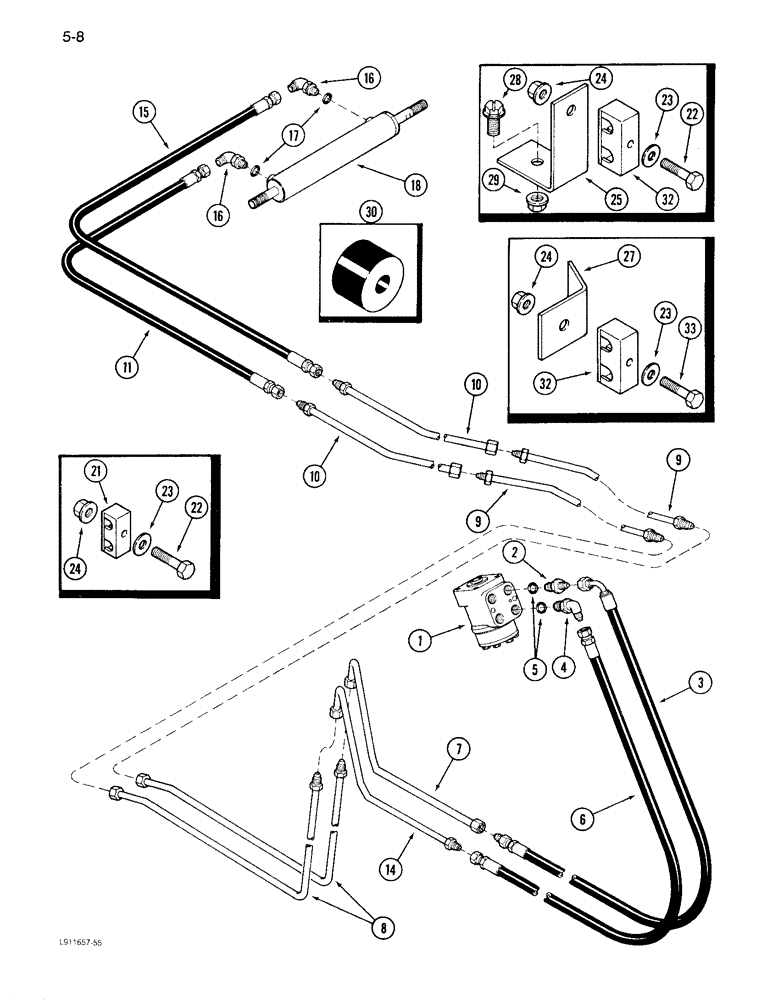

Запчасти Case IH 1640 (5-08) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-10)

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - short, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

3

1317940C1

HOSE

- steering hand pump left

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread x 3/8 inch tube 9/16-18 thread

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

2шт.

6

1317971C1

HOSE ASSY.

HOSE - steering hand pump, right

1шт.

7

1321968C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper inside

1шт.

8

1321959C1

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, forward

2шт.

9

196790C2

HYD TUBE

TUBE ASSEMBLY - steering, intermediate, rear

2шт.

10

196791C1

HYD TUBE,0.375" OD

TUBE ASSEMBLY - steering rear

2шт.

11

1285380C2

HYDRAULIC HOSE

HOSE - cylinder lower, 3/8 inch x 1 270 mm (Replaces 178961C1)

1шт.

11

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- cylinder lower, 68 inch (For 120 inch axle)

1шт.

14

1321967C1

HYD TUBE

TUBE ASSEMBLY - steering, forward, upper outside

1шт.

15

178962C1

HOSE ASSY.

HOSE - cylinder upper, 60 inch

1шт.

15

183920C1

HOSE ASSY.

HOSE - cylinder upper, 77 inch (For 120 inch axle)

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-12)

1шт.

21

183825C1

CLAMP

- steering tubes, for 3/8 inch tube

5шт.

23

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

4шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, 1/4 inch NC

5шт.

25

178950C1

ANGLE

- steering tubes

1шт.

27

178960C1

BRACKET

SUPPORT - steering rear tubes

1шт.

28

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange, 3/8 inch NC

1шт.

30

167955C2

SEAL

GROMMET - steering cylinder hoses

2шт.

32

1301178C1

CLAMP

- steering tubes

3шт.

33

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

22

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.
