Запчасти Case IH 1640 (6-54) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

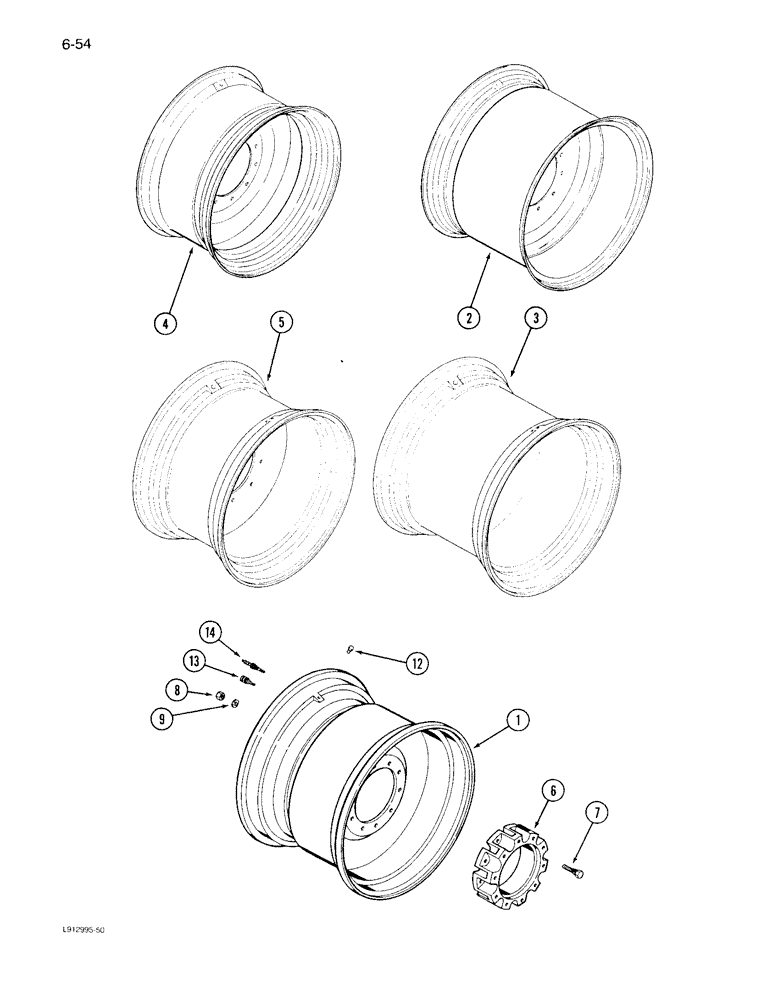

Схема запчастей Case IH 1640 - (6-54) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN
6
8
12
5
9
14
4
13
7
2
3
1

Артикул

Название

Примечание

Количество

1

193599C1

WHEEL ASSY.

WHEEL - drive (For 23.1 x 26 tire) (Alternate with 188792C1 and 1312997C1)

2шт.

1

188792C1

WHEEL ASSY.

WHEEL - drive (For 23.1 x 26 tire) (Alternate with 193599C1 and 1312997C1)

2шт.

1

1312997C1

RIM

WHEEL - drive (For 23.1 x 26 tire) (Alternate with 193599C1 and 188792C1)

2шт.

1

196197C2

WHEEL ASSY.

WHEEL - drive (For 28L x 26 tire)

2шт.

1

193666C1

WHEEL

- drive (For 24.5 x 32 tire)

2шт.

1

196196C2

WHEEL

- drive (For 23.1 x 34 tire)

2шт.

2

184480C1

RIM

WHEEL - drive (For 30.5L x 32 tire)

2шт.

3

NSS

NOT SOLD SEPARAT

WHEEL - drive (For 30.5L x 32 tire) (Order 184480C1, Ref 2)

2шт.

4

184482C1

RIM

WHEEL - drive (For 24.5 x 32 tire)

2шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - drive (For 24.5 x 32 tire) (Order 184482C1, Ref 4)

2шт.

6

178912C92

RETAINER

SPACER - wheel, 3-1/2 inch

2шт.

6

188124C91

RETAINER

SPACER - wheel, 2-1/2 inch

2шт.

7

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel (Used in spacer only)

20шт.

8

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, Grade 8

20шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Not used with spacers 13/16" x 1 1/2" x .219", HDN

20шт.

12

417194C1

PLUG

- valve hole (For tubeless tire)

2шт.

12

383697R1

PLUG

- valve hole (For tube type tire)

2шт.

13

179482C1

VALVE STEM

VALVE - inflation

2шт.

14

407184C1

VALVE STEM

CORE - valve inflation

2шт.

Выбрано товаров: 19
