Запчасти Case IH 1640 (6-52) - FINAL DRIVE (CONTD) (03) - POWER TRAIN

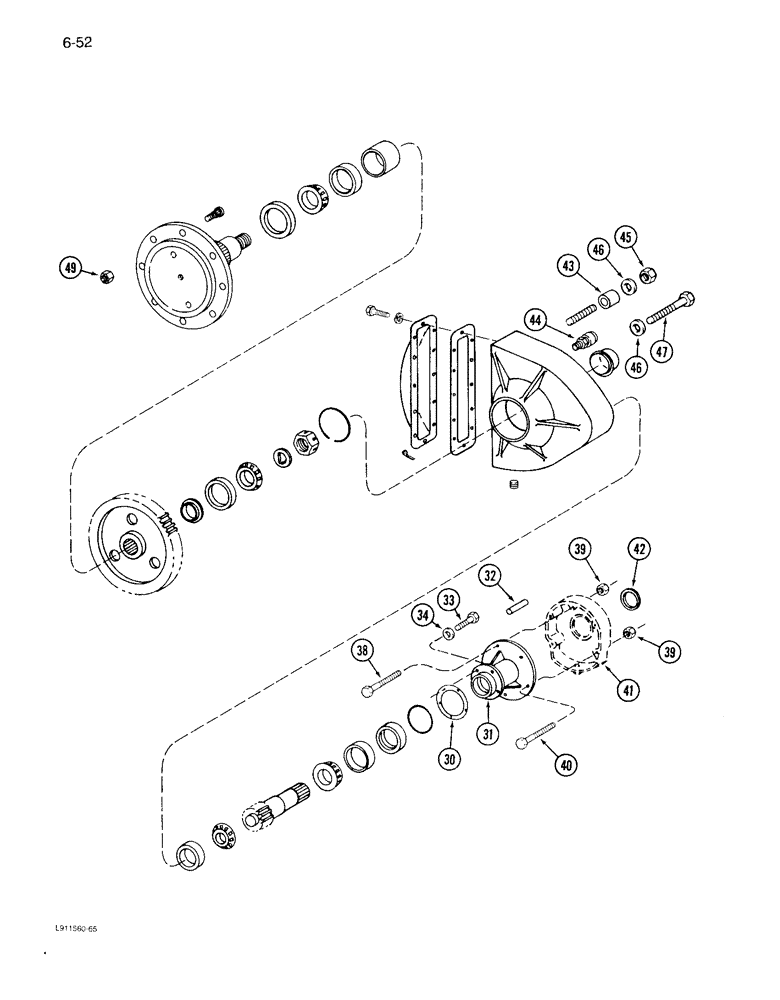

Схема запчастей Case IH 1640 - (6-52) - FINAL DRIVE (CONTD) (03) - POWER TRAIN
41
44
32
34
46
45
43
38
47
46
39
49
31
40
42
39
33
30

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE ASSEMBLY - final, left continued, Includes: Ref. 1 - 29 on Figure 6-50 & Ref. 30 - 34

1шт.

REF

INSTRUCTION

DRIVE ASSEMBLY - final, right continued, Includes: Ref. 1 - 29 on Figure 6-50 & Ref. 30 - 34

1шт.

30

405627R1

SHIM

- adapter housing, 0.003 inch

1шт.

30

376467R1

SHIM

- adapter housing, 0.007 inch

1шт.

30

184348C1

SHIM

- adapter housing, 0.015 inch

1шт.

30

184349C1

SHIM

- adapter housing, 0.030 inch

1шт.

31

60002C91

ADAPTER

- brake housing, left (Includes Ref. 32)

1шт.

31

60004C91

ADAPTER

- brake housing, right (Includes Ref. 32)

1шт.

32

141279

DOWEL,1/2" x 3/4"

PIN - dowel, 1/2 x 3/4 inch

1шт.

33

28138R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 8

- hex, 7/16 NC x 1-1/8 inch, Grade 8

5шт.

34

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, hardened, 15/32 inch

5шт.

38

113-320

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

4шт.

39

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

10шт.

40

113-346

BOLT,Hex, 7/16" - 14 x 5", Gr 5

- hex, 7/16 x 5 inch

6шт.

41

REF

INSTRUCTION

HOUSING - brake (See Figure 7-04)

2шт.

42

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- brake housing

2шт.

43

1315371C1

BUSHING

- main axle end plate

4шт.

44

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

- oil

2шт.

45

129-138

NUT,3/4"-10, G8

12шт.

46

25548R1

WASHER

- flat, 13/16 inch

14шт.

47

27356R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

2шт.

49

REF

INSTRUCTION

NUT - hex, wheel retaining (See Figure 6-54)

20шт.

Выбрано товаров: 22
