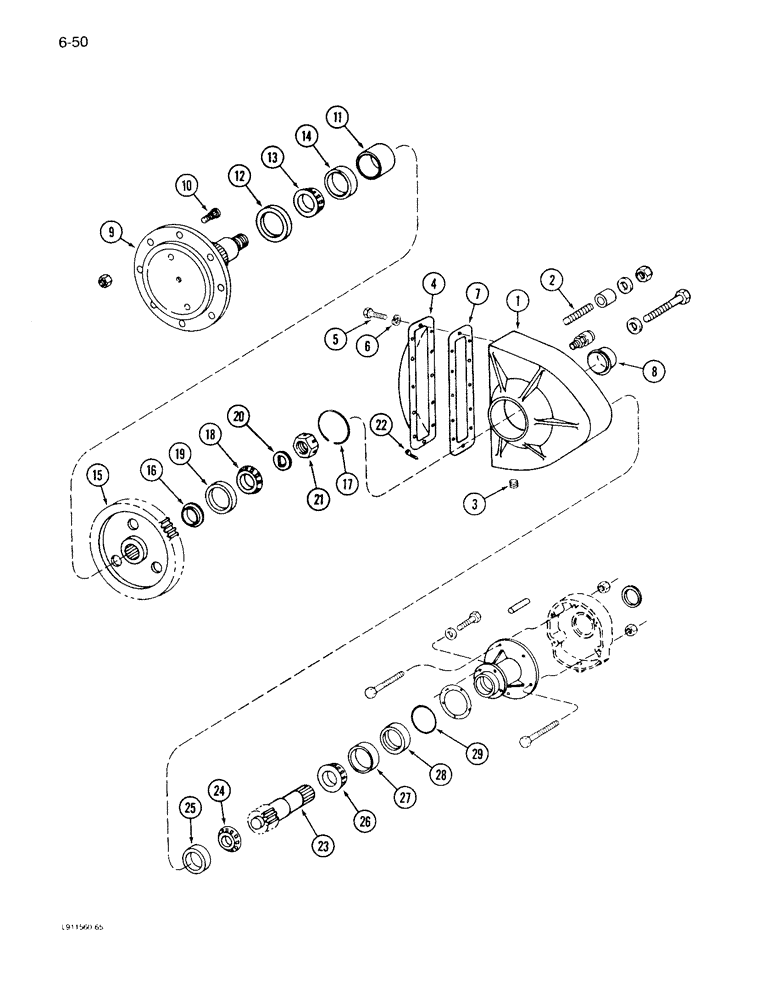

Запчасти Case IH 1640 (6-50) - FINAL DRIVE (03) - POWER TRAIN

1323474C94

REDUCER

DRIVE ASSEMBLY - final, left, Includes: Ref. 1 - 29 & Ref. 30 - 34 on Figure 6-52

1шт.

1323475C94

REDUCER

DRIVE ASSEMBLY - final, right, Includes: Ref. 1 - 29 & Ref. 30 - 34 on Figure 6-52

1шт.

1

1277169C1

HOUSING

- final drive, left

1шт.

1

1277170C1

HOUSING

- final drive, right

1шт.

2

1277171C1

STUD

- housing mounting

6шт.

3

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4 inch PT

2шт.

4

587078R91

PAN ASSY.

COVER - housing

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

12шт.

6

492-11038

LOCK WASHER,3/8"

12шт.

7

184229C2

GASKET

GASKET - cover

1шт.

8

107622C3

BEARING CAP,92.4 mm ID x 114.3 mm OD x 45.7 mm

- driveshaft inner bearing

1шт.

9

1536597C1

SHAFT

- final drive, Includes: Ref. 10

1шт.

10

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel

10шт.

11

107627C1

SPACER

- shaft outer

1шт.

12

59881C1

OIL SEAL,96.14mm ID x 133.5mm OD x 11.89mm Thk

- outer

1шт.

13

63461C91

BEARING ASSY,3.25" ID x 5.25" OD x 1.5625"

CONE - bearing, outer, 3-1/4 inch ID

1шт.

14

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP - bearing, outer, 5-1/4 inch OD

1шт.

15

107628C1

GEAR

- final drive, 69 tooth

1шт.

16

107626C1

SPACER

- gear inner

1шт.

17

107625C1

RING

- retaining snap

1шт.

18

298033R91

TAPERED BEARING,53.98mm ID x 36.51mm W

CONE - bearing, inner, 2-1/8 inch ID

1шт.

19

107624C1

BEARING CUP,104.78mm OD x 28.57mm W

CUP - bearing, inner, 4-1/8 inch OD

1шт.

20

404076R1

WASHER

- final drive shaft

1шт.

21

1975476C1

SLOTTED NUT

- hex, final drive

1шт.

22

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

23

184180C2

SHAFT

- pinion, 13 tooth

1шт.

24

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE - bearing, outer pinion shaft, 1-5/16 inch ID

1шт.

25

50213V

BEARING CUP

CUP - bearing, outer pinion shaft, 2-3/4 inch OD

1шт.

26

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

CONE - bearing, inner pinion shaft, 2-3/16 inch ID

1шт.

27

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing, inner pinion shaft, 3-13/16 inch

1шт.

28

380186R92

OIL SEAL

- oil, adapter housing

1шт.

29

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.
