Запчасти Case IH 1640 (6-48) - DRIVE AXLE (03) - POWER TRAIN

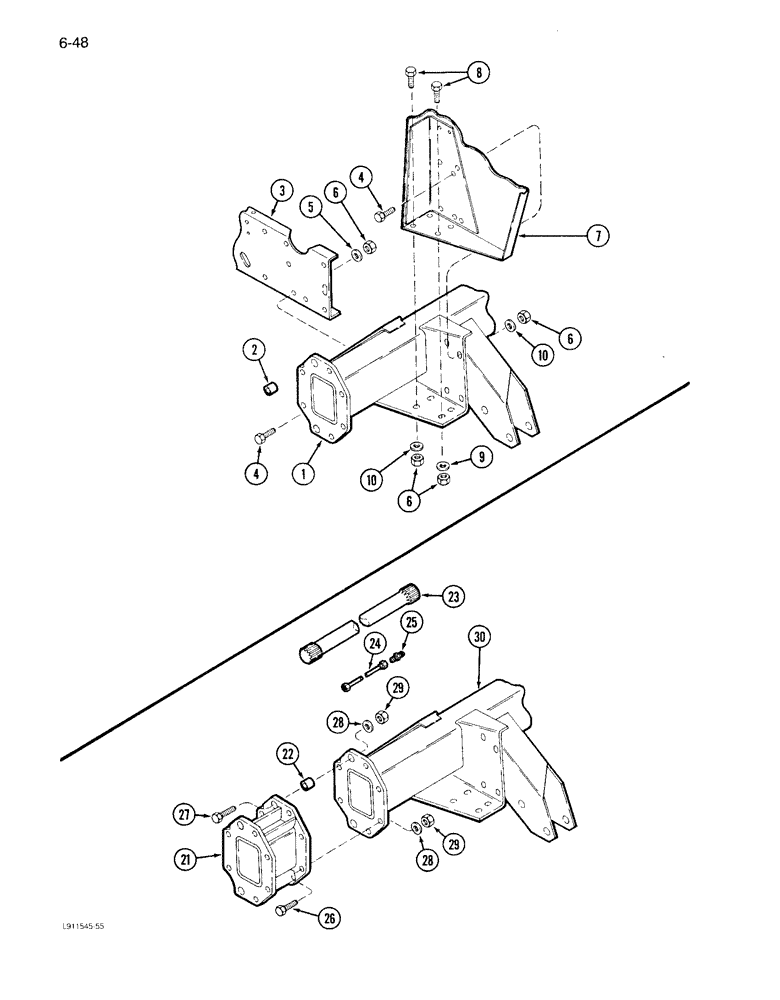

Схема запчастей Case IH 1640 - (6-48) - DRIVE AXLE (03) - POWER TRAIN
6
29
28
1
23
2
6
27
4
7
21
22
10
28
8
26
10
5
6
29
9
24
3
25
4
30

Артикул

Название

Примечание

Количество

1

1324584C3

CENTER AXLE

AXLE - drive

1шт.

2

1315371C1

BUSHING

DOWEL - end plate

4шт.

3

REF

INSTRUCTION

SUPPORT - separator side, right (See Figure 9H-6)

1шт.

4

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

18шт.

5

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

10шт.

6

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

26шт.

7

REF

INSTRUCTION

POST - separator front, right (See Figure 9H-06)

1шт.

8

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

9

129-138

NUT,3/4"-10, G8

WASHER - flat, 21/32 x 1-1/2 x 3/16 inch

4шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

12шт.

21

1315370C3

AXLE

EXTENSION - axle, 8 inch, short

2шт.

22

1315371C1

BUSHING

DOWEL - end plate, extension, short axle

4шт.

23

184221C1

SHAFT

- axle, right, extension, short

1шт.

23

184220C1

SHAFT

- axle, left, extension, short Shaft Length 701.25 mm

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE - brake extension, 1/4 OD x 8 inch (Use 8 inch from 25 foot roll marked 990094C1, 2- 9403525 nut and 2- 9403447 sleeve), short axle

2шт.

990094C2

HOSE

TUBE - brake, 1/4 OD x 25 foot (Not Shown), extension, short axle

1шт.

9403525

TUBE NUT,37 Degree, 7/16"-20, Type B

NUT - 1/4 OD tube, 7/16-20 hydraulic flared (Not Shown), extension, short axle

1шт.

9403447

SLEEVE,37 Degree, 1/4" Tube

- 1/4 OD tube (Not Shown), extension, short axle

1шт.

25

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - 1/4 OD tube, 7/16-20 hydraulic flared, extension, short axle

2шт.

26

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Extension, short axle Hex, 3/4"-10 x 2 1/4", G8

12шт.

27

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Extension, short axle Hex, 3/4"-10 x 2 3/4", G8

4шт.

28

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

Extension, short axle 13/16" x 1 1/2" x .219", HDN

20шт.

29

329-1012

NUT,3/4"-10, G8

Extension, short axle 3/4"-10, G8

16шт.

30

REF

INSTRUCTION

AXLE - drive (See Ref 1), extension, short axle

1шт.

181002C3

SUPPORT

Bracket cylinder, 3rd, extension, short axle

1шт.

Выбрано товаров: 25
