Запчасти Case IH 1640 (6-46) - TRANSMISSION DIFFERENTIAL SHAFT (03) - POWER TRAIN

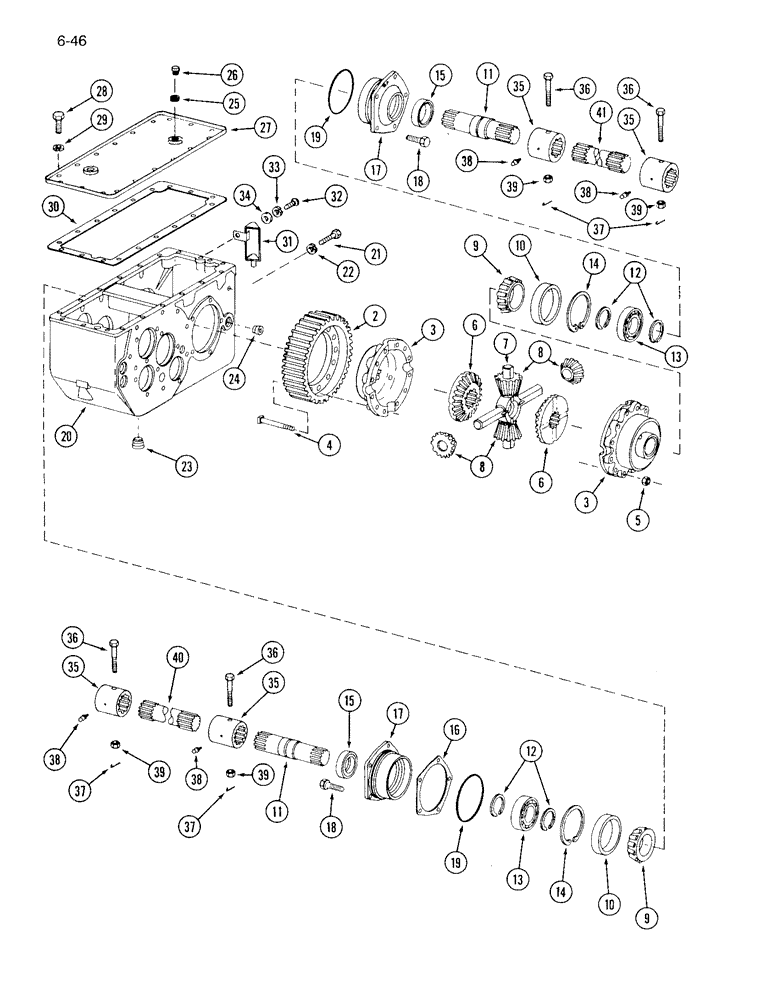

Схема запчастей Case IH 1640 - (6-46) - TRANSMISSION DIFFERENTIAL SHAFT (03) - POWER TRAIN
41
38
37
13
12
21
38
39
36
39
11
19
36
7
39
4
18
13
36
31
40
2
36
24
35
5
15
15
38
29
25
30
37
16
17
35
22
35
9
37
26
39
14
33
20
12
11
17
8
3
23
6
18
10
35
34
27
3
28
8
19
6
9
14
10
38
32

Артикул

Название

Примечание

Количество

1968234C1

DIFFERENTIAL

ASEMBLY

1шт.

395631R92

PACKAGE

KIT - differential case, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - differential driven, 53 teeth

1шт.

3

NSS

NOT SOLD SEPARAT

CASE - differential

2шт.

4

395636R2

BOLT,1/2" - 20 x 3.87"

- differential case

8шт.

5

381368R1

NUT,Hex, 1/2" - 20, Gr 8

- hex, 1/2 inch NF, Grade 8

8шт.

6

360962R2

GEAR

- differential bevel, 28 teeth

2шт.

7

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

8

360961R1

GEAR

- differential spider, 15 teeth

4шт.

9

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

CONE - bearing, differential

2шт.

10

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, differential

2шт.

11

533848R3

SHAFT

- differential

2шт.

12

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining, external, 1.657 inch

4шт.

13

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING - ball, differential cage

2шт.

14

379485R1

RING

- differential bearing, snap

2шт.

15

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

- oil, differential cage

2шт.

16

573976R1

DISC

SHIM - cage, 0.003 inch

1шт.

16

573977R1

SHIM

- cage, 0.005 inch

1шт.

16

573978R1

SHIM

- cage, 0.010 inch

1шт.

17

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

- bearing

2шт.

18

326-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

10шт.

19

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

2шт.

20

184079C1

CASE

HOUSING - transmission

1шт.

21

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

- hex, 1/2 NC x 1-1/2 inch, Grade 8

4шт.

22

366864C1

LOCK WASHER,1/2"

1/2"

4шт.

23

1963920C1

PLUG

- drain, magnetic, 3/4 inch PT

1шт.

24

20969R1

PLUG

- square head pipe, 3/4-14 (Oil fill level)

1шт.

25

115224

ADAPTER

- 3/4 to 3/8 inch PT

1шт.

26

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

- transmission housing

1шт.

27

184074C2

COVER

- transmission housing

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

15шт.

29

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, 3/8 inch

15шт.

30

573998R2

GASKET

- transmission case cover

1шт.

31

402838R1

TROUGH

- oil

1шт.

32

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

195-516

WASHER,#12

- flat, 1/4 x 9/16 x 1/32 inch

1шт.

35

184342C1

COUPLING

- axle shaft

4шт.

36

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex drilled, 3/8 NC x 3 inch, Grade 8

4шт.

37

21864R1

COTTER PIN

- S Type retaining

4шт.

38

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4 inch PT

4шт.

39

654049R1

LOCK NUT

- flex lock, 3/8 inch NC

4шт.

40

184183C1

SHAFT

- final drive, left Shaft Length 504.70 mm

1шт.

41

184184C1

SHAFT

- final drive, right

1шт.

Выбрано товаров: 44
