Запчасти Case IH 1640 (6-42) - TRANSMISSION INTERMEDIATE SHAFT (03) - POWER TRAIN

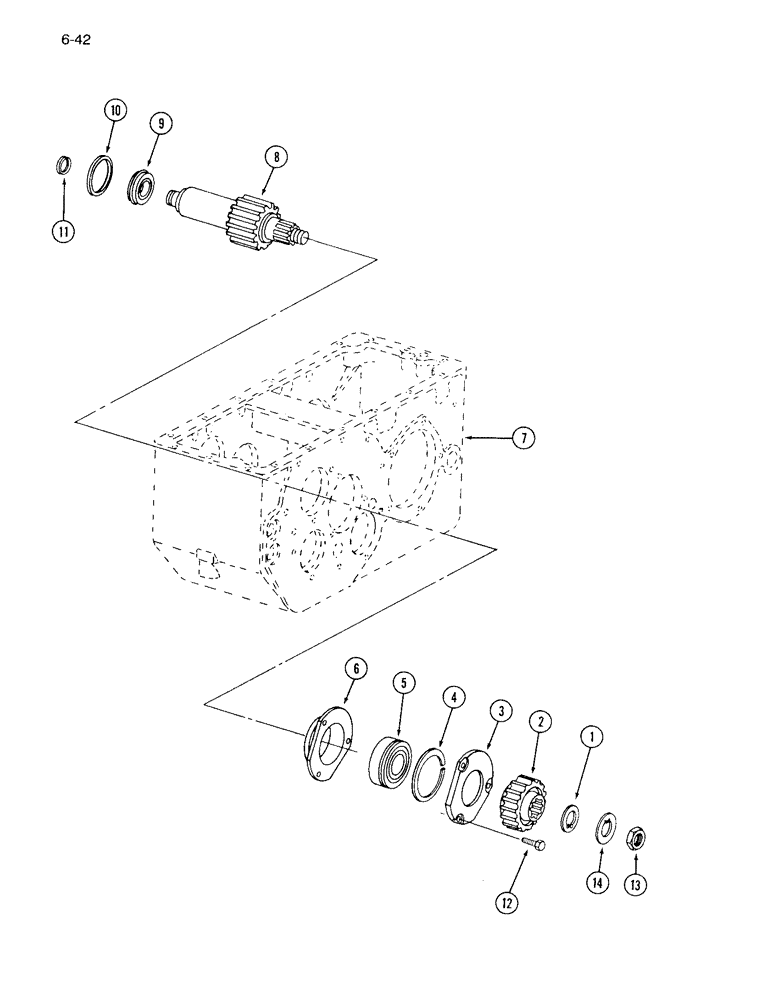

Схема запчастей Case IH 1640 - (6-42) - TRANSMISSION INTERMEDIATE SHAFT (03) - POWER TRAIN
4
5
8
14
11
2
9
10
6
3
12
1
13
7

Артикул

Название

Примечание

Количество

1

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- intermediate shaft

1шт.

2

402840R1

GEAR

- change driven, 28 tooth

1шт.

3

395645R1

RETAINER

- bearing

1шт.

4

ST419

RING

- bearing snap, 3-25/64 inch OD

1шт.

5

395643R91

BEARING, ROLLER, CYL,40mm ID x 80mm OD x 30.1mm W

- intermediate shaft, 3-5/32 inch OD

1шт.

6

395644R2

NEEDLE BEARING CAGE

CAGE - intermediate shaft bearing

1шт.

7

REF

INSTRUCTION

HOUSING - transmission (See Page 6-47)

1шт.

8

402839R1

SHAFT

- intermediate gear, 17 teeth

1шт.

9

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - ball, intermediate shaft, 2-7/16 inch OD

1шт.

10

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

- transmission case square seal

1шт.

11

370504R1

RING

- bearing snap, 1-1/16 inch ID

1шт.

12

27970R1

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex prevailing torque, 5/16 NC x 7/8 inch, Grade 8

3шт.

13

382879R1

NUT

- intermediate shaft

1шт.

14

382900R1

LOCK WASHER

- intermediate shaft lock

1шт.

Выбрано товаров: 14
