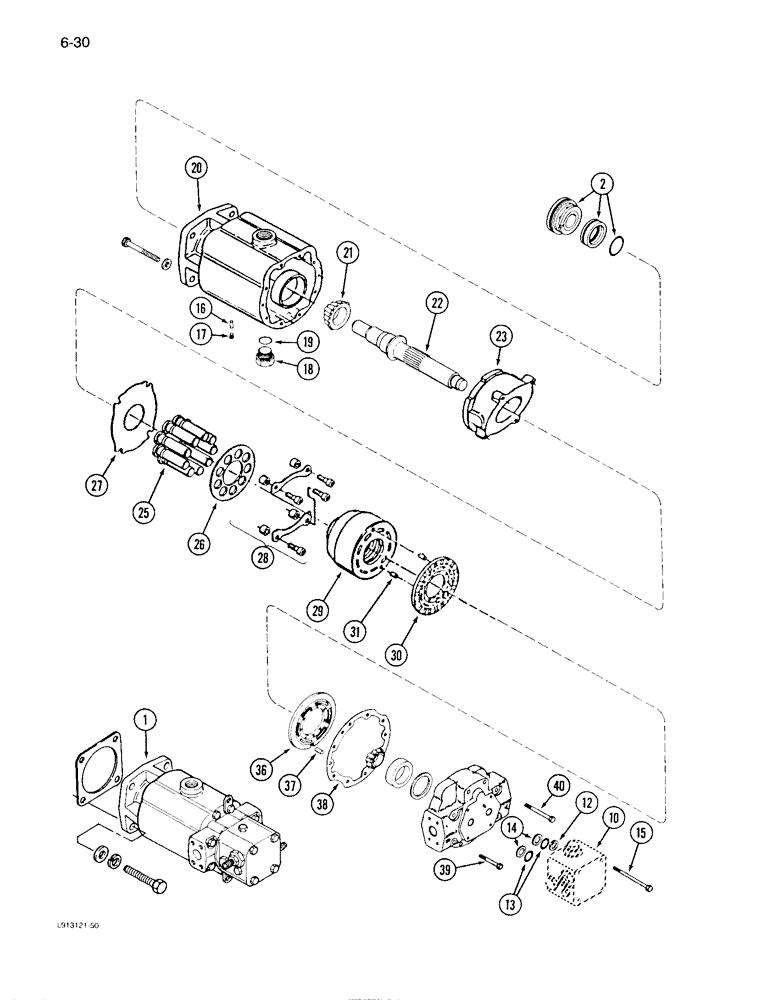

Запчасти Case IH 1640 (6-30) - HYDROSTATIC MOTOR, P.I.N. JJC0097001 AND AFTER (03) - POWER TRAIN

1

1343746C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, Includes: Ref. 2 - 40 & Ref. 41- 50 on Figure 6-32

1шт.

Part number stamped on part.

1шт.

1343747C1

REMAN-HYDROSTAT MOTO

1640 SN JJC0034705 & Aft., N.A. Only

1шт.

1343748C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

2

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft

1шт.

10

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve (See Figure 6-34)

1шт.

140747C91

SEAL KIT

- valve block seal, Includes: Ref. 12 - 14

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

- backup

2шт.

15

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened, 5/16 inch

1шт.

17

444688

PLUG

- solid head, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - bearing, drive shaft, 3-1/2 inch OD

1шт.

21

92742C1

TAPERED BEARING

CONE - bearing, drive shaft, 1-7/8 inch ID

1шт.

22

1346188C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1978053C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

36

92732C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

92735C2

GASKET

- end cover

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

40

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.
