Запчасти Case IH 1640 (6-28) - HYDROSTATIC MOTOR, PRIOR TO P.I.N. JJC0097001 (CONTD) (03) - POWER TRAIN

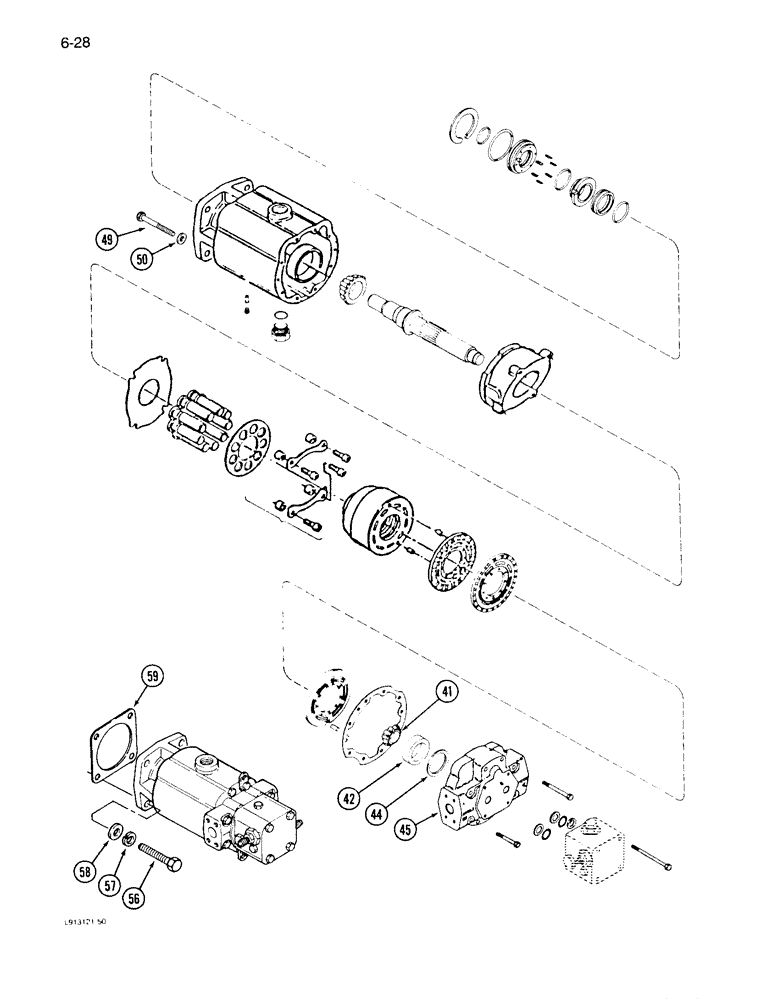

Схема запчастей Case IH 1640 - (6-28) - HYDROSTATIC MOTOR, PRIOR TO P.I.N. JJC0097001 (CONTD) (03) - POWER TRAIN
58
41
50
45
42
57
56
59
44
49

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, continued, Includes: Ref. 3 - 40 on Figure 6-26 & Ref. 41 - 50

1шт.

41

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

CONE - bearing, output shaft, 5/8 inch ID

1шт.

42

140759C1

BEARING CUP

CUP - bearing, output shaft, 2-1/4 inch OD

1шт.

44

140760C91

SHIM KIT

KIT - bearing shim

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

49

61-548

HEX SOC SCREW,5/16"-18 x 3"

BOLT - hex socket, 5/16 NC x 3 inch

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

56

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

58

283856C1

WASHER

- flat, 17/32 x 1 x 5/64 inch

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

Выбрано товаров: 12
