Запчасти Case IH 1640 (6-26) - HYDROSTATIC MOTOR, PRIOR TO P.I.N. JJC0097001 (03) - POWER TRAIN

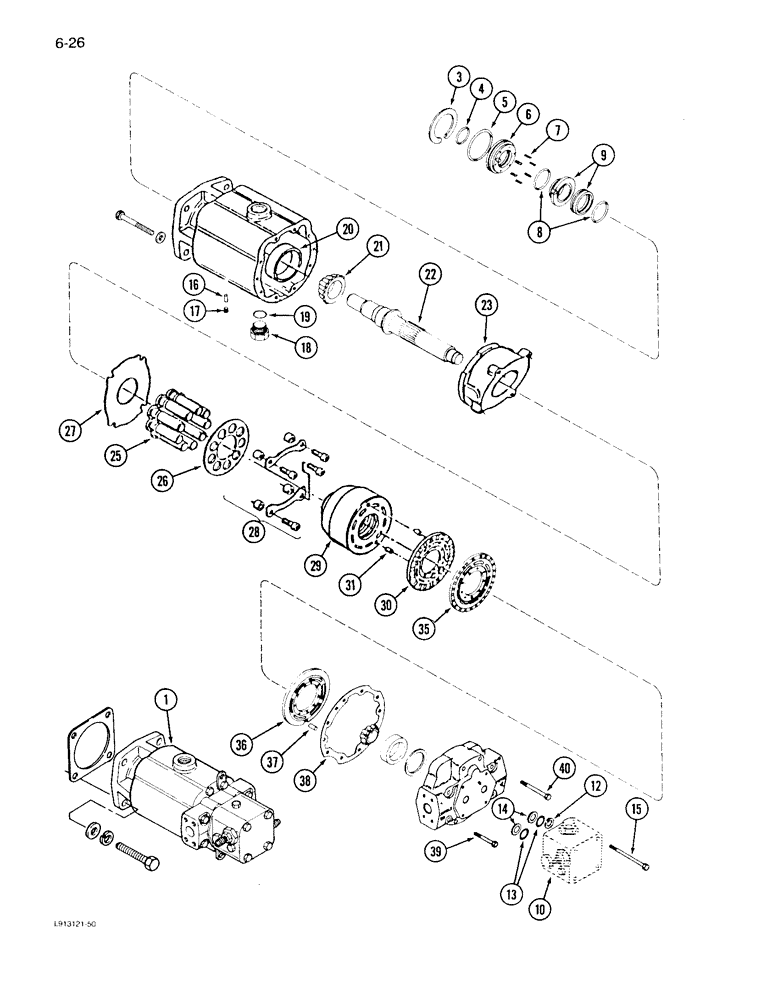

Схема запчастей Case IH 1640 - (6-26) - HYDROSTATIC MOTOR, PRIOR TO P.I.N. JJC0097001 (03) - POWER TRAIN
39
20
23
1
12
8
19
38
30
35
31
25
28
18
29
16
4
26
21
5
22
27
7
36
15
40
17
10
6
13
9
3
37

Артикул

Название

Примечание

Количество

1

1958075C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, Includes: Ref. 3 - 40 & Ref. 41 - 50 on Figure 6-28

1шт.

1

1958076C1

REMAN-HYDROSTAT MOTO

Motor Assembly - Hydrostatic, Remanufactured

1шт.

1

1958077C1

CORE-HYDROSTAT MOTOR

Return Number - use this part number to return motor core for credit

1шт.

Part number stamped on part.

1шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 3 - 9

1шт.

3

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

4

S113612

O-RING

- shaft, 1-3/8 x 1-1/2 x 1/16 inch

1шт.

5

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal (Order 142518C92)

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - shaft seal (Order 142518C92)

6шт.

8

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shaft (Order 142518C92)

1шт.

10

REF

INSTRUCTION

BLOCK ASSEMBLY - relief valve (See Figure 6-34)

1шт.

140747C91

SEAL KIT

- valve block seal, Includes: Ref. 12 - 14

1шт.

12

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- square, 3/4 x 7/8 x 1/16 inch

1шт.

13

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- 7/8 x 1-1/16 x 3/32 inch

2шт.

14

631458C1

RING

- backup

2шт.

15

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

20020R1

DOWEL,5/16" x 1"

PIN - dowel, hardened, 5/16 inch

1шт.

17

444688

PLUG

- solid head, 1/8 inch PT

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

1шт.

20

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - bearing, drive shaft, 3-1/2 inch OD

1шт.

21

92742C1

TAPERED BEARING

CONE - bearing, drive shaft, 1-7/8 inch ID

1шт.

22

1346188C1

SHAFT

- output (Replaces 1978048C1)

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed

1шт.

1978053C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

35

142395C1

PLATE

- bearing

1шт.

36

92732C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

92735C2

GASKET

- end cover

1шт.

39

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

40

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

Выбрано товаров: 40
