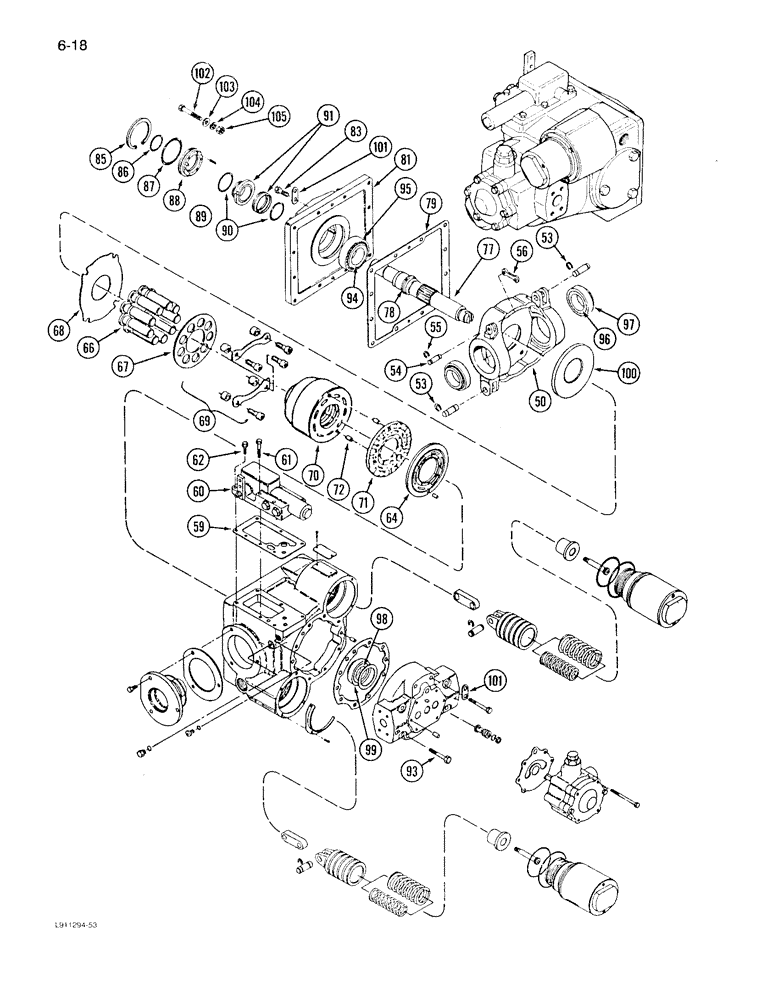

Запчасти Case IH 1640 (6-18) - HYDROSTATIC PUMP, PRIOR TO P.I.N. JJC0097001 (CONTD) (03) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, continued, Includes: Ref. 2 - 52 on Figure 6-16 and Ref. 53 - 99

1шт.

53

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

54

140765C1

PIN

- link, control valve

1шт.

55

A7111

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

56

142402C1

LINK

- connecting, control valve

1шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control (See Figure 6-24)

1шт.

61

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex, 5/16 NC x 1-3/4 inch

2шт.

62

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

64

1980165C1

PLATE

- pump valve

1шт.

1980164C1

KIT

- rotating, cylinder, Includes: Ref. 66 - 72

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

69

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

71

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

72

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

77

1980161C1

SHAFT

- input, Includes: Ref. 78

1шт.

78

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

79

142414C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order assembly)

1шт.

83

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

142518C92

PACKAGE

SEAL ASSEMBLY - shaft, Includes: Ref. 85 - 91

1шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

86

S113612

O-RING

- 1-3/8 x 1-1/2 x 1/16 inch

1шт.

87

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- shaft, 2-9/16 x 2-3/4 x 3/32 inch

1шт.

88

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

89

NSS

NOT SOLD SEPARAT

SPRING - shaft seal

6шт.

90

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- shaft, 1-11/16 x 1-7/8 x 3/32 inch

2шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

2шт.

94

92742C1

TAPERED BEARING

CONE - bearing, drive shaft, 1-7/8 inch ID

1шт.

95

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP - bearing, input shaft

1шт.

96

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - bearing trunnion, 1-25/32 inch ID

2шт.

97

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - bearing trunnion, 2-57/64 inch OD

2шт.

98

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

CONE - bearing, output shaft, 5/8 inch ID

1шт.

99

140759C1

BEARING CUP

CUP - bearing, output shaft, 2-1/4 inch OD

1шт.

100

80369C1

PLATE

- thrust

1шт.

101

NSS

NOT SOLD SEPARAT

STRAP - shipping (Shown for reference only)

2шт.

102

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

103

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

104

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

4шт.

105

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
