Запчасти Case IH 1640 (6-16) - HYDROSTATIC PUMP, PRIOR TO P.I.N. JJC0097001 (03) - POWER TRAIN

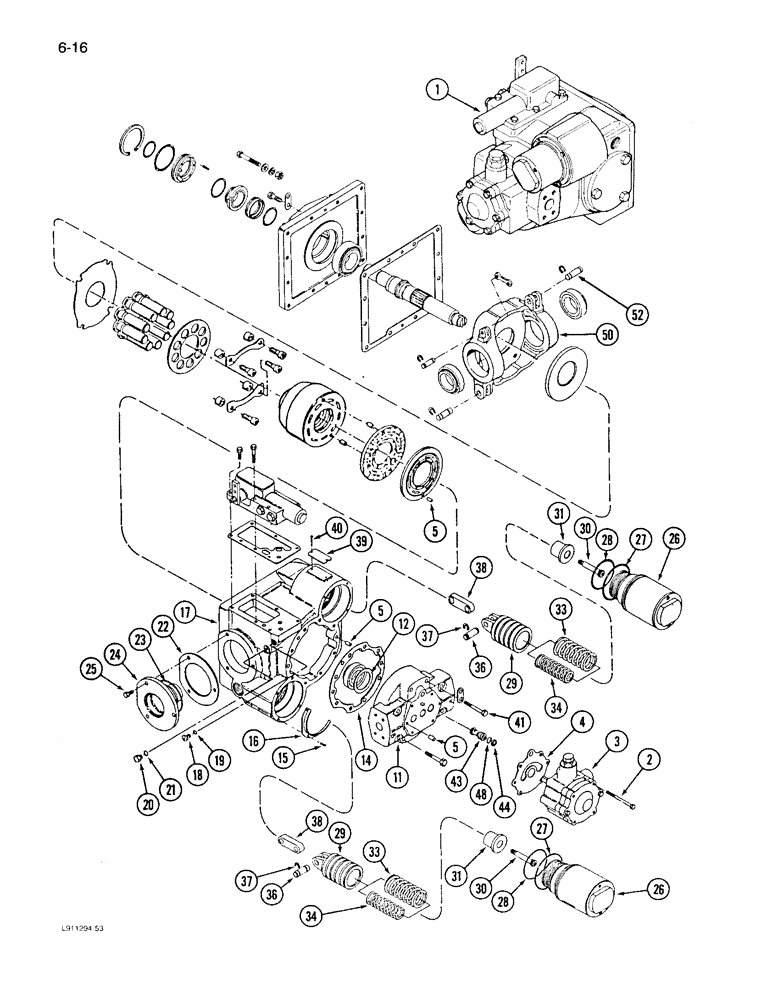

Схема запчастей Case IH 1640 - (6-16) - HYDROSTATIC PUMP, PRIOR TO P.I.N. JJC0097001 (03) - POWER TRAIN
5
19
2
30
36
37
5
34
31
21
23
15
12
30
25
43
4
31
11
14
37
29
28
26
39
48
50
34
27
36
24
18
17
52
1
28
38
33
22
27
26
5
40
20
29
38
16
41
44
33
3

Артикул

Название

Примечание

Количество

1

1958072C1

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new, Includes: Ref. 2 - 52 and Ref. 53 - 99 on Figure 6-18

1шт.

1

1958073C1

REMAN-HYDROSTAT PUMP

Pump Assembly - hydrostatic, remanufactured

1шт.

1

1958074C1

CORE-HYDROSTAT PUMP

Return Number - use this part number to return pump core for credit

1шт.

Part number stamped on part.

1шт.

2

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

REF

INSTRUCTION

PUMP - charge (See Figure 6-24)

1шт.

4

1986882C1

GASKET

- charge pump (Order 133760C2)

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

5шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump (Order assembly)

1шт.

12

140783C91

PACKAGE

KIT - shim, end cover

1шт.

14

140756C2

GASKET

- end cover

1шт.

15

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, Hex Soc Hd, #8-32 x 3/8"

6шт.

16

140774C1

RETAINER

- servo piston

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING PUMP - (Order assembly)

1шт.

18

1288962C1

PLUG

- hex socket, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9410356

PLUG

- 1/4 inch straight thread o-ring boss

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

- trunnion bearing, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch

4шт.

23

22409R1

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

-231, 70 Duro, 2.609" ID x .139" Thk, trunnion

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION

2шт.

25

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

26

140773C1

KIT

SLEEVE - servo

2шт.

27

383018R1

O-RING,2.675" ID x 0.103" Width

-147, 90 Duro, 2.675" ID x .103" Thk, servo sleeve

2шт.

28

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

-143, 90 Duro, 2.425" ID x .103" Thk, end

2шт.

29

1980166C1

PISTON

- servo, Includes: Ref. 30 - 38

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, light

1шт.

36

140766C1

PIN,14.22mm OD x 39.12mm L

-link

1шт.

37

28145R1

SNAP RING,#56, Ext

Ring, Snap, , link #56, Ext

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - identification

1шт.

40

NSS

NOT SOLD SEPARAT

SCREW - drive, identification plate

2шт.

41

897520R1

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

6шт.

43

140769C1

CHECK VALVE

VALVE - check

2шт.

44

140770C1

RING

- check valve

2шт.

48

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

-113, 90 Duro, .549" ID x .103" Thk, check valve

2шт.

50

1980163C1

HOUSING

PLATE - swash

1шт.

52

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

Выбрано товаров: 46
