Запчасти Case IH 1640 (6-14) - PROPULSION CONTROL (03) - POWER TRAIN

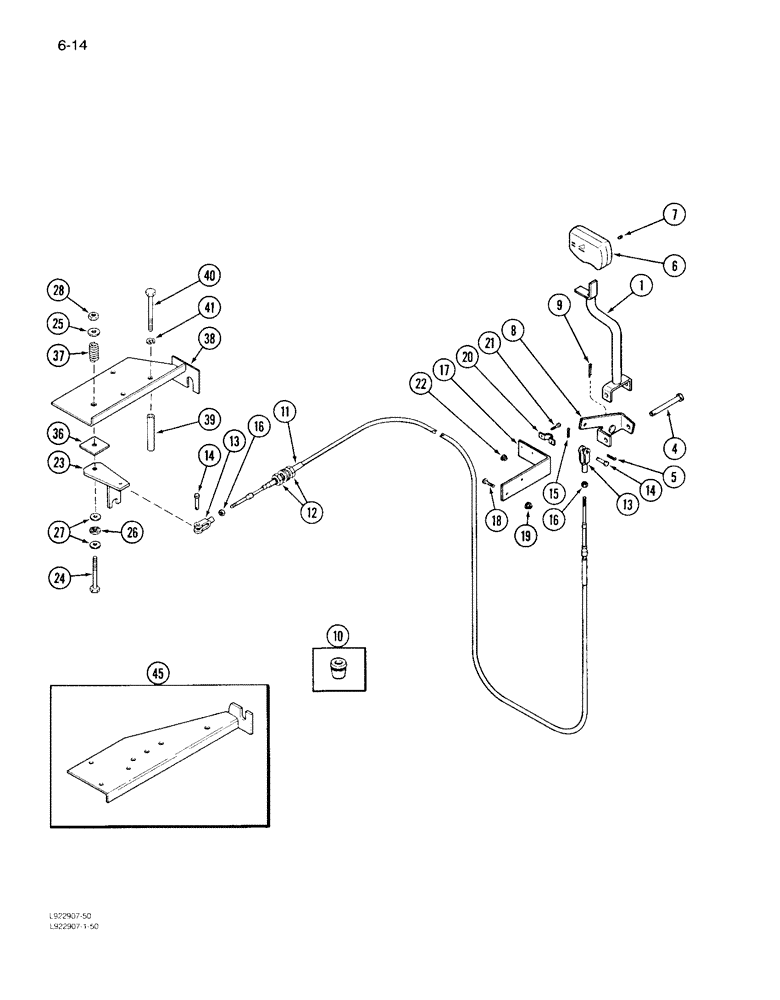

Схема запчастей Case IH 1640 - (6-14) - PROPULSION CONTROL (03) - POWER TRAIN
25
24
16
18
37
6
40
27
14
8
17
19
1
11
15
28
13
45
39
41
38
9
26
22
16
20
14
7
36
21
13
4
10
5
12
23

Артикул

Название

Примечание

Количество

1

183508C93

LEVER

ARM - propulsion control

1шт.

4

19876R1

PIN

- hardened clevis, 1/2 inch

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

1301180C92

HANDLE

- propulsion control arm, Includes: Ref. 7

1шт.

7

61-3068

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW - hex socket head, No. 6 x 1/2 inch

4шт.

8

1267441C1

SUPPORT ASSY.

SUPPORT - lever pivot

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hydrostatic drive control cable

2шт.

11

1339382C1

CABLE,4877mm L

- hydrostatic drive control

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

2шт.

13

144242

CLEVIS

- control cable

2шт.

14

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

16

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

17

193281C1

ANGLE

- control cable mounting

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

2шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

20

195593C1

CLAMP

- control cable

1шт.

21

937875R1

SCREW,Serr, 1/4" - 20

BOLT - slotted truss head, 1/4 NC x 3/4 inch

2шт.

22

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

23

151917C94

ARM ASSY.

ARM - pump actuating

1шт.

24

424-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 2

- hex, 7/16 NC x 3-1/4 inch, Grade 2

1шт.

25

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

- flat, 15/32 x 1 x 3/64 inch

1шт.

26

159688R91

THRUST BEARING

BEARING - actuating arm

1шт.

27

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, hardened, 15/32 inch

2шт.

28

131-667

NUT,7/16"-14, GB

NUT - hex prevailing torque, 7/16 inch NC

1шт.

36

150627C1

FRICTION WASHER

- control arm friction

1шт.

37

28395H

SPRING

- control arm

1шт.

38

1347063C1

SUPPORT ASSY.

SUPPORT - pump control (P.I.N. JJC0097001 and after)

1шт.

39

600411R1

SPACER,3/8" Pipe x 2 3/4"

- pump control support (P.I.N. JJC0097001 and after)

3шт.

40

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

3шт.

41

492-11038

LOCK WASHER,3/8"

3шт.

45

1957600C3

SUPPORT

- pump control (Prior to P.I.N. JJC0097001)

1шт.

Выбрано товаров: 33
