Запчасти Case IH 1640 (6-12) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN

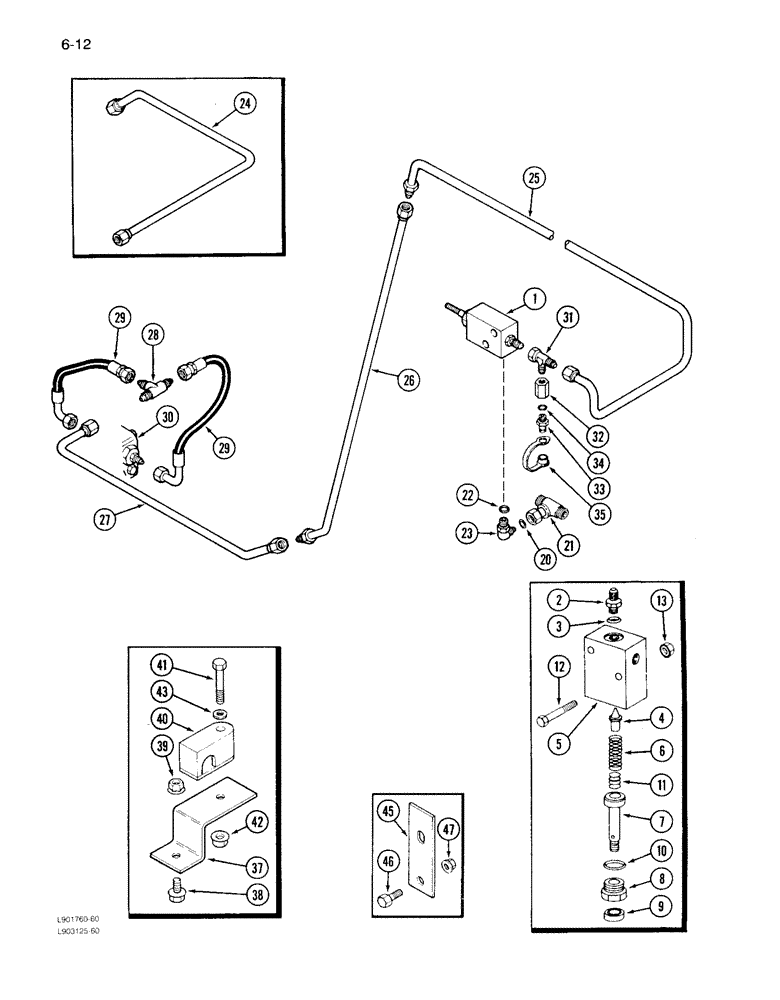

Схема запчастей Case IH 1640 - (6-12) - FOOT-N-INCH VALVE SYSTEM (03) - POWER TRAIN
38
6
5
35
30
34
10
24
39
8
33
27
41
20
31
2
45
21
1
46
3
37
4
32
23
13
26
42
29
11
12
43
28
9
29
40
22
25
47
7

Артикул

Название

Примечание

Количество

1

1986874C1

VALVE

ASSEMBLY - Foot-N-Inch, 5500 PSI (Stamped 55-74), Includes: Ref. 2 - 13

1шт.

1

398705R91

VALVE

ASSEMBLY - Foot-N-Inch, 5600 PSI (Stamped 55-05), Includes: Ref. 2 - 13

1шт.

1

1986875C1

VALVE

ASSEMBLY - Foot-N-Inch, 6000 PSI (Stamped 60-75), Includes: Ref. 2 - 13

1шт.

2

398709R1

SEAT

- poppet valve

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

4

398710R1

VALVE POPPET

VALVE - poppet

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve (Order assembly)

1шт.

6

398731R1

SPRING

- valve (Used with 398705R91 and 1986874C1 valve)

1шт.

6

539751R1

SPRING

- valve (Used with 1986875C1 valve)

1шт.

7

398708R1

STOP

- valve, Includes: Ref. 8, 9

1шт.

8

398707R1

GUIDE

- valve spring stop

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 5/8 OD tube

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM - relief valve (Order 530575R91 kit)

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

530575R91

SHIM KIT

KIT - relief valve shim, Includes: Parts listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

- 13/16-16 inch swivel face branch x face x face

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

23

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face x 9/16-18 inch Adj O-ring

1шт.

24

1321273C1

HYD TUBE

TUBE - Foot-N-Inch valve return

1шт.

Prior to P.I.N. JJC0097190.

1шт.

25

1321272C2

HYD TUBE

TUBE - Foot-N-Inch upper

1шт.

Prior to P.I.N. JJC0097190.

1шт.

25

1541795C1

HYD TUBE

TUBE - valve return, Foot-N-Inch

1шт.

P.I.N. JJC0097190 and After.

1шт.

26

1327829C1

HYD TUBE

TUBE - Foot-N-Inch center

1шт.

27

197508C1

HYD TUBE

TUBE - Foot-N-Inch lower

1шт.

28

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare

1шт.

29

175760C1

HOSE ASSY.

HOSE - Foot-N-Inch, 10 inch

2шт.

30

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

31

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x fl x adj straight thread

1шт.

32

1541796C1

FITTING

CONNECTOR - 7/16-20 flare x 9/16-18 inch O-ring

1шт.

33

1541849C1

COUPLING

COUPLER - diagnostic, Includes: Ref. 34, 35

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

35

H434163

DUST CAP

CAP - coupler, dust

1шт.

37

196517C1

SUPPORT TUBE

SUPPORT - Foot-N-Inch tubes

1шт.

38

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

39

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

40

183820C1

CLAMP

- Foot-N-Inch tube

1шт.

41

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

42

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

43

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

1шт.

45

196868C2

SUPPORT

PLATE - support

1шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

47

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

Выбрано товаров: 51
