Запчасти Case IH 1640 (6-10) - FOOT-N-INCH PEDAL (03) - POWER TRAIN

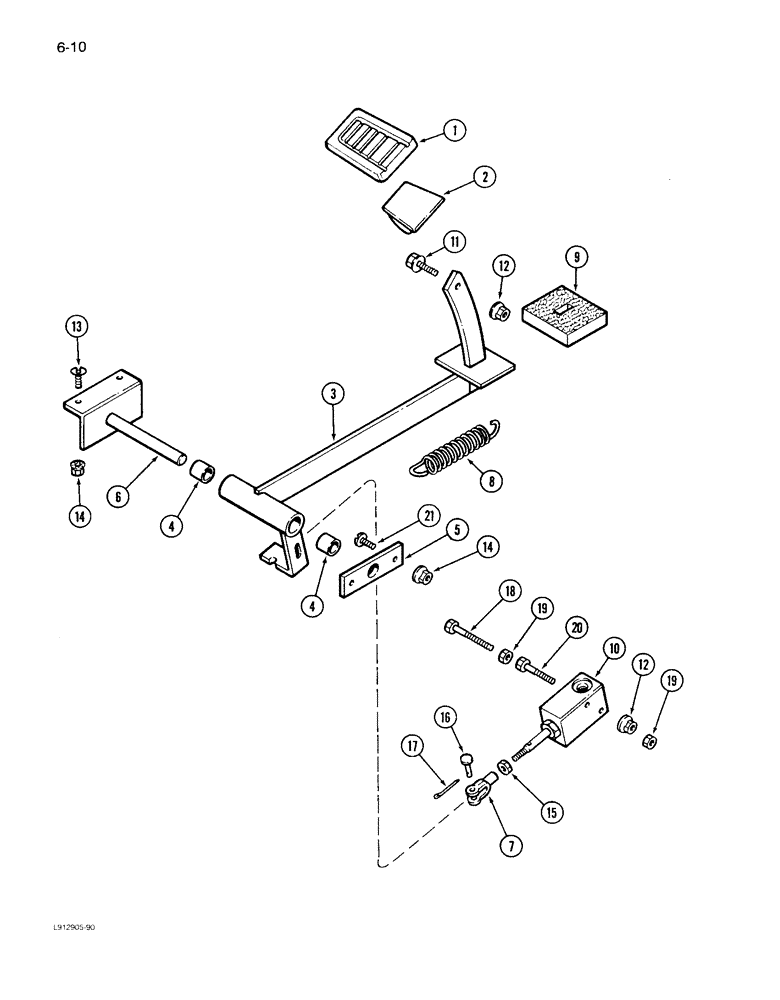

Схема запчастей Case IH 1640 - (6-10) - FOOT-N-INCH PEDAL (03) - POWER TRAIN
3
15
8
19
2
4
18
1
14
9
20
17
10
11
16
13
19
7
12
6
5
12
4
1
14
21

Артикул

Название

Примечание

Количество

1

863426R1

PAD

- pedal

1шт.

2

163425C1

PEDAL

- Foot-N-Inch

1шт.

3

1321960C92

SUPPORT

ASSEMBLY - pedal, Includes: Ref. 4

1шт.

4

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support assembly

2шт.

5

1281794C1

PLATE

BAR - pivot shaft support

1шт.

6

1281816C3

SUPPORT

- pivot shaft

1шт.

7

144242

CLEVIS

- adjustable, 5/16 NF x 2-1/4 inch

1шт.

8

398763R2

SPRING

- pedal return

1шт.

9

1321935C1

SEAL

- pedal

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch (See Figure 6-12)

1шт.

11

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex, 3/8 NC x 1-1/4 inch, black

1шт.

12

1327765C1

LOCK NUT

- hex flange lock, 3/8 inch NC, black

2шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head. 5/16 NC x 3/4 inch

2шт.

14

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

15

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam, 5/16 inch NF

1шт.

16

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

Выбрано товаров: 21
