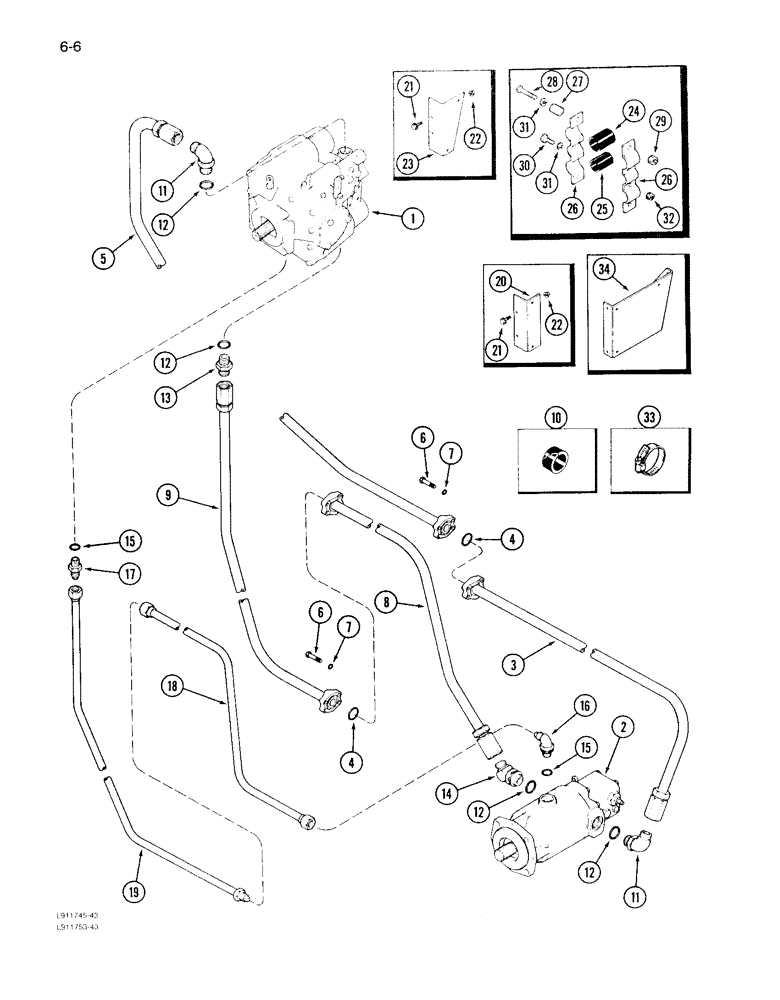

Запчасти Case IH 1640 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM, PRIOR TO SERIAL NO. JJC0097001 (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Figure 6-16)

1шт.

2

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic (See Figure 6-26)

1шт.

3

196533C2

TUBE

ASSEMBLY - drive reverse lower pressure

1шт.

4

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1-5/16 x 1-9/16 inch

2шт.

5

1970117C1

TUBE

- drive reverse upper pressure

1шт.

For combine equipped without power rear wheel drive.

1шт.

6

113-2223

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

8шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

196531C2

TUBE

ASSEMBLY - drive forward lower pressure

1шт.

9

1970118C2

HYD TUBE

TUBE - drive forward upper pressure

1шт.

For combine equipped without power rear wheel drive.

1шт.

10

165722C1

SLEEVE

- tube nut rubber

2шт.

11

595408R1

90 ELBOW

- 90 degree, 1-5/16-12 x 1 inch OD tube

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1/8 inch

4шт.

13

163915C1

FITTING

CONNECTOR - 1-5/16-12

1шт.

14

595406R1

ELBOW

- 45 degree, 1-5/16-12

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch OD tube

2шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, 3/4 tube 1-1/16-12 inch thread

1шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - short, 3/4 tube 1-1/16-12 thread

1шт.

18

183763C2

HYD TUBE

TUBE ASSEMBLY - bleed lower

1шт.

19

1330465C2

HYD TUBE

TUBE ASSEMBLY - bleed, upper

1шт.

For combine equipped without power rear wheel drive.

1шт.

20

187936C2

BRACKET

- tube middle support

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

23

187937C2

BRACKET

- tube front support

1шт.

24

1979963C1

SHIN

STRIP - pressure tube clamp

4шт.

25

187935C1

STRIP

- bleed tube clamp

2шт.

26

1979951C1

SHIN

CLAMP - tube retaining

4шт.

27

1979761C1

SPACER

- 3/8 ID x 1 inch

4шт.

28

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

29

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

33

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

34

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.
