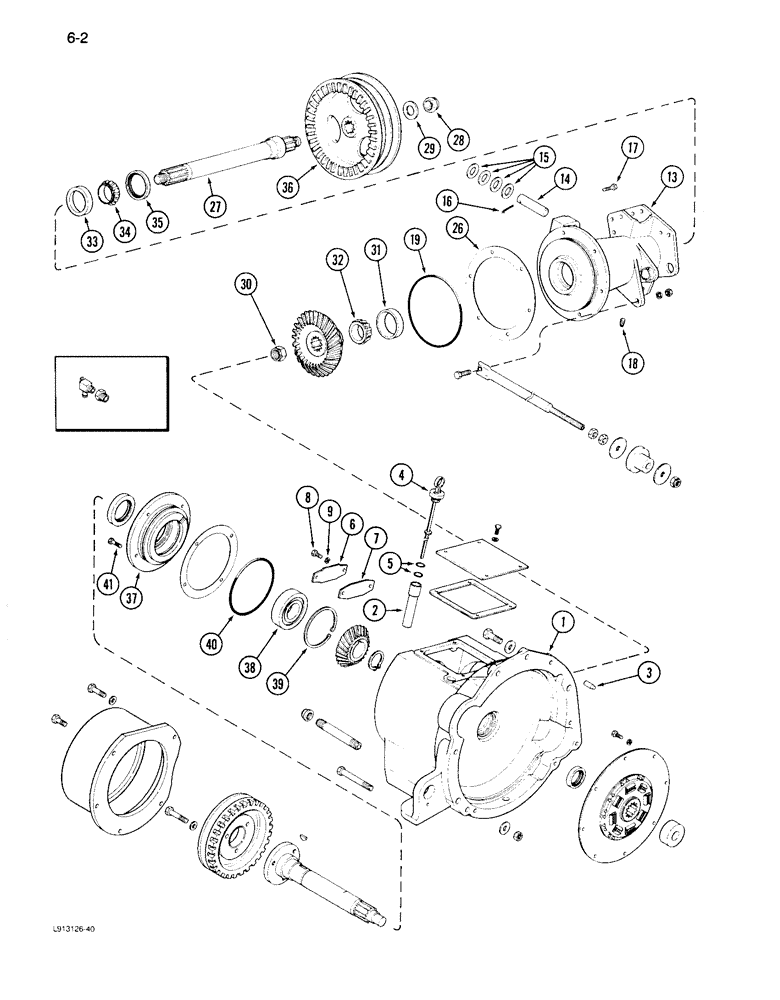

Запчасти Case IH 1640 (6-02) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

1

184433C3

HOUSING

- power takeoff drive, Includes: Ref. 2, 3

1шт.

2

188072C1

TUBE,25.4 mm OD, 127 mm Length

- oil gauge

1шт.

3

1330136C1

DOWEL

PIN - dowel, locating

2шт.

4

188073C91

DIPSTICK

GAUGE - oil level, Includes: Ref. 4, 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

185056C1

COVER

- bolt hole

1шт.

7

185057C1

GASKET

- bolt hole cover

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

13

1329747C1

HOUSING

- separator drive, Includes: Ref. 14

1шт.

14

195439C2

PIN,25.29mm OD x 101.6mm L

- separator drive housing

1шт.

15

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

4шт.

16

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

18

50057K

PLUG

- separator housing

1шт.

19

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

- separator housing, 8 x 8-1/4 x 1/8 inch

1шт.

188195C1

SHIM KIT

KIT - separator drive housing shim, Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - separator housing, 0.005 inch

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - separator housing, 0.007 inch

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - separator housing, 0.010 inch

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - separator housing, 0.030 inch

1шт.

27

1329745C1

SHAFT

- separator drive

1шт.

28

18521R1

LOCK NUT,1"-14, G8

NUT - hex lock, 1 inch NF

1шт.

29

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

- flat, 1-1/16 x 2 x 7/32 inch

1шт.

30

194737C1

LOCK NUT

- hex, 1 inch NF

1шт.

31

ST987

BEARING CUP

CUP - bearing, separator housing rear, 3-17/64 inch OD

1шт.

32

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - bearing, separator housing rear, 3-17/64 inch ID

1шт.

33

376463C1

BEARING CUP

CUP - bearing, separator housing front, 3-15/64 inch OD

1шт.

34

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

CONE - bearing, separator housing front, 2 inch ID

1шт.

35

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- separator housing

1шт.

36

191461C1

PULLEY,110mm OD

- separator drive, 11 inch OD

1шт.

37

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing

1шт.

38

ST297

BEARING, BALL

BEARING - ball, drive shaft, 4-23/32 inch OD

1шт.

39

27822R1

SNAP RING,4.78", Int, #475

RING - internal retaining, 5-7/32 inch

1шт.

40

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

41

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.
