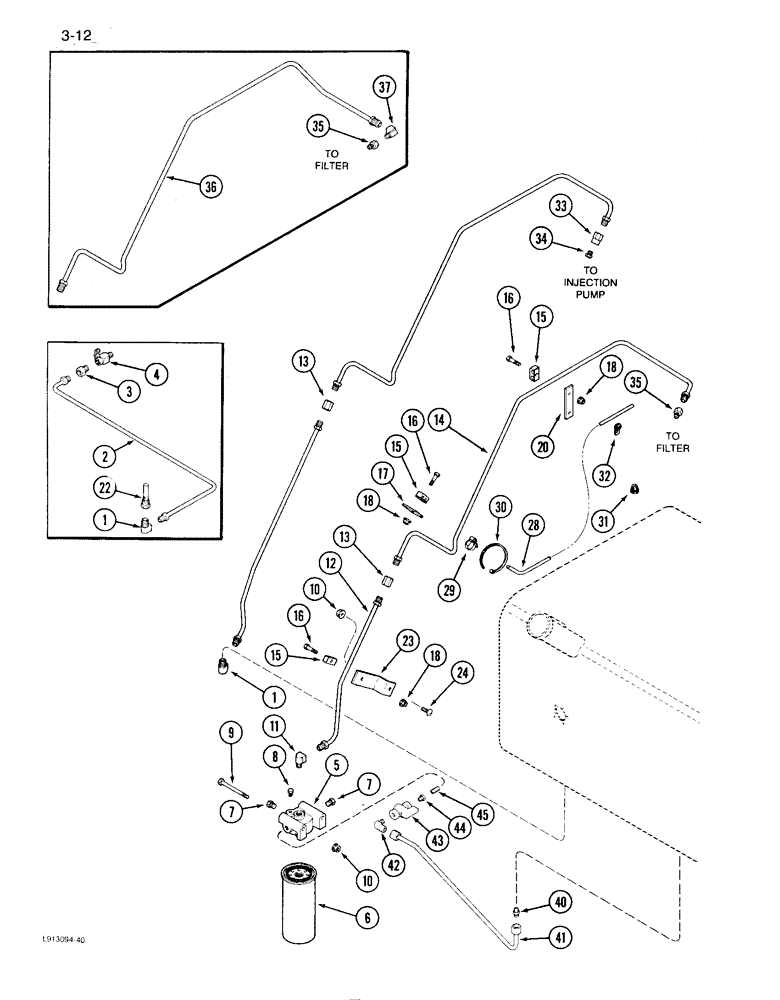

Запчасти Case IH 1640 (3-12) - FUEL LINES AND FILTER SYSTEM (02) - FUEL SYSTEM

1

144535R1

ELBOW

- fuel line lower tubes

2шт.

2

1315507C1

FUEL TUBE,0.375" OD, 662.9, 292.1 mm Length

TUBE ASSEMBLY - fuel line, filter base to tank (If equipped)

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., , Inverted flared tube, 3/8" (If equipped) 5/8"-18 Inv Fl x 1/4" NPT

2шт.

4

217-94

SHUT-OFF VALVE

VALVE ASSEMBLY - fuel shutoff (If equipped)

1шт.

5

612277C2

FILTER HEAD

BASE ASSEMBLY - fuel filter

1шт.

6

A184776

FUEL FILTER

FILTER ASSEMBLY - fuel

1шт.

7

20988R1

PLUG,Hex Hd, 1/4"-18, Brass

- hex head pipe, 1/4-18 inch

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 x 4 inch

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

3шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

- inverted flared tube, 90 degree, 3/8 inch

2шт.

12

1315506C1

FUEL TUBE

TUBE ASSEMBLY - fuel line, fuel supply lower

1шт.

13

442338

UNION

- inverted flared tube, 3/8 inch

2шт.

14

1330566C1

FUEL TUBE

TUBE - fuel line pressure, upper (If equipped)

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

17

198462C1

PLATE

- fuel line upper tubes support

1шт.

18

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

3шт.

19

1330565C1

FUEL TUBE

TUBE - fuel line return, upper

1шт.

20

1330564C1

PLATE

SUPPORT - fuel line

1шт.

22

179381C1

SIEVE

STRAINER - fuel tank (If equipped)

1шт.

23

196517C1

SUPPORT TUBE

SUPPORT - fuel line lower tubes

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss head, 5/16 NC x 1 inch

1шт.

25

183653C2

FUEL TUBE

TUBE ASSEMBLY - fuel line return, lower

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - fuel vent, 3 175 mm long (Order 74813C2, Serial Range: cut-length)

1шт.

29

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

1шт.

30

533959R1

CABLE TIE,.135" x 11"

STRAP - retaining

1шт.

31

195803C1

GROMMET

- 3/8 inch

1шт.

32

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - retaining

3шт.

33

442330

FITTING

CONNECTOR - 1/4 inch PT

1шт.

34

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Adapter - hex pipe 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

35

1330561C1

FITTING

UNION - return line

1шт.

36

1980042C1

FUEL TUBE

TUBE - fuel line pressure, upper

1шт.

37

442412

ELBOW

- 90 degree, 1/4 - 18 PT

1шт.

40

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

41

1994884C1

FUEL TUBE

TUBE ASSEMBLY - fuel line, filter, Serial Range: base-tank

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

43

1345205C1

SHUT-OFF VALVE

VALVE - fuel line shut off

1шт.

44

444032

BUSHING,1/2"-14 NPTF x 1/4"-18 Fem NPTF

- reducer, 1/2 to 1/4 inch PT

1шт.

45

443978

FITTING,1/4"-18 NPTF, Brass

NIPPLE - pipe, 1/4 inch NC

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
