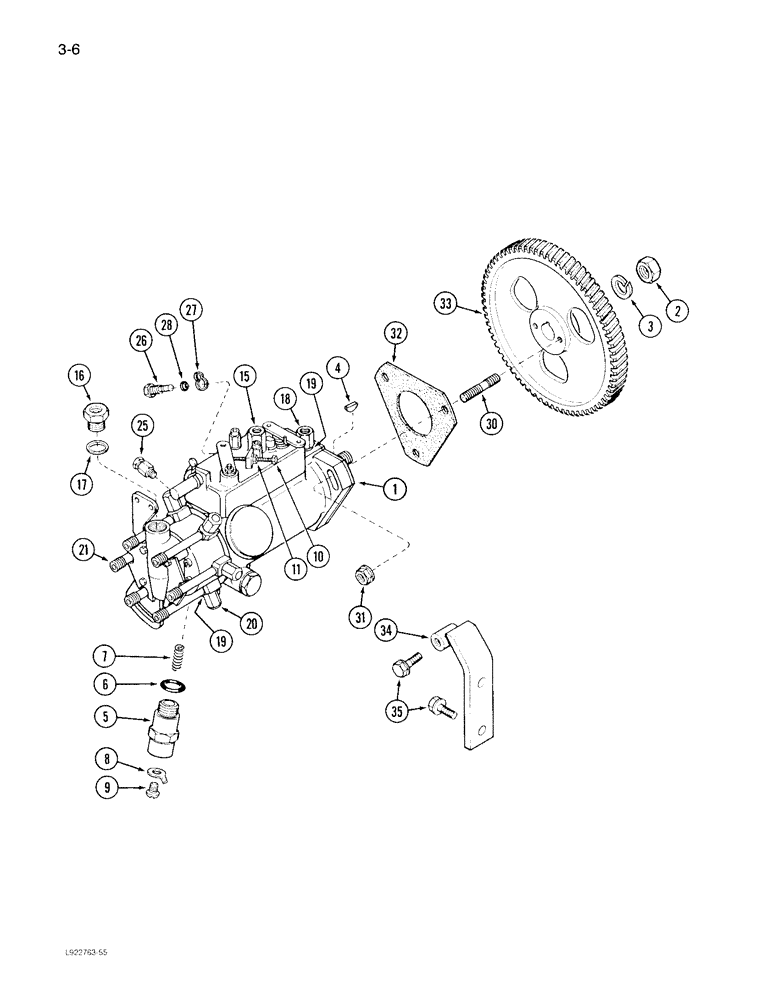

Запчасти Case IH 1640 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J915155

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 28

1шт.

1

JR915155

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured

1шт.

1

JC915155

CORE-INJECTION PUMP

Return Number- injection pump (Use this part number to return pump core for credit)

1шт.

2

J903738

NUT

NUT - hex, 14 mm

1шт.

3

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

J902332

KEY

KEY - retainer, pump gear

1шт.

5

J904630

SOLENOID

SOLENOID ASSEMBLY - shut down, 12 volt

1шт.

6

J904635

O-RING

O-RING - solenoid

1шт.

7

J904777

SPRING

SPRING - solenoid

1шт.

8

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

1шт.

9

A77413

SCREW,Hex, M5 x 8mm

SCREW - 5 x 8 mm

1шт.

10

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

11

131-1144

LOCK NUT,Jam, #10 - 24

NUT - hex lock, No. 10-32 NF

1шт.

15

J904640

VENT

ORIFICE - bleed

1шт.

16

J904641

FITTING

FITTING - inlet

1шт.

17

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

18

J904643

FITTING

FITTING - return

1шт.

19

J904644

WASHER

WASHER - sealing

9шт.

20

J904646

BANJO BOLT

BOLT - banjo

6шт.

21

K962755

ADAPTER

FITTING - banjo

6шт.

25

K963867

SCREW

SCREW ASSEMBLY - bleed, pump head

1шт.

26

J904778

BOLT

BOLT - hex, locking device

1шт.

27

J904779

WASHER

WASHER - locking

1шт.

28

J904780

SEAL

SEAL - locking bolt

1шт.

30

J902501

STUD

STUD - pump mounting, 8 x 48 mm

3шт.

31

J900589

NUT

NUT - hex flange, 8 mm

8шт.

32

J914389

GASKET

GASKET - pump mounting

1шт.

33

J920594

PINION

GEAR - pump drive

1шт.

34

J905387

BRACE

BRACE - fuel pump

1шт.

35

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 mm - 1.25 x 20 mm

3шт.
