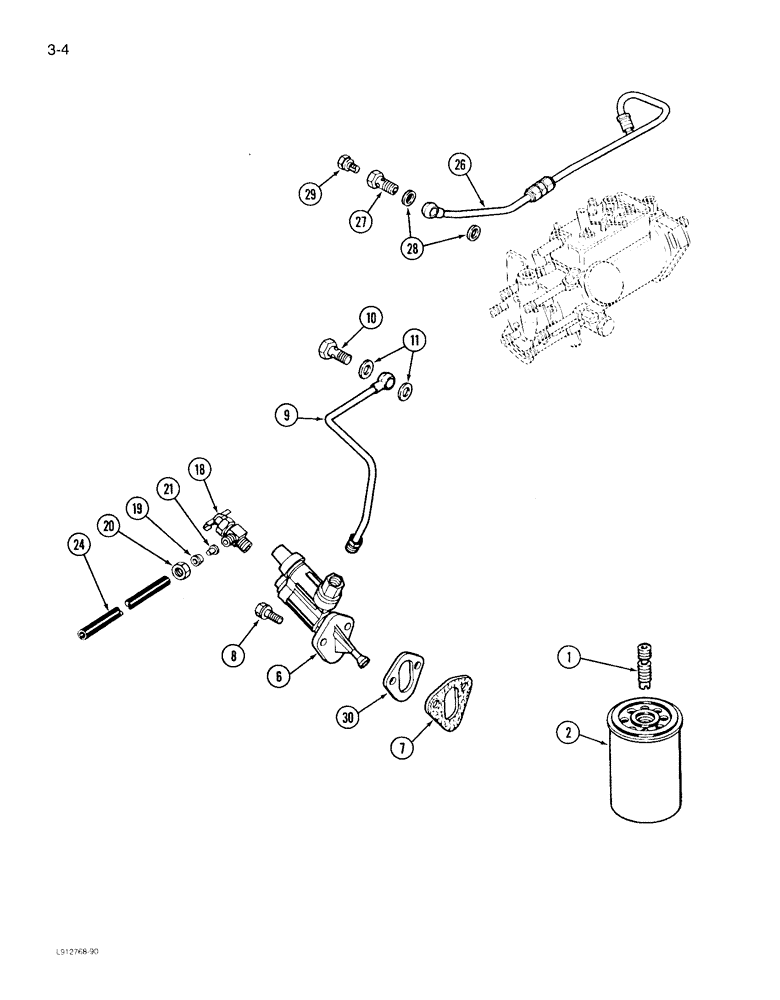

Запчасти Case IH 1640 (3-04) - FUEL FILTER AND LIFT PUMP, 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J903845

BANJO BOLT

ADAPTER - filter, fuel

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

6

J918076

PUMP

ASSEMBLY - lift, fuel

1шт.

7

J914304

GASKET

- mounting, pump

2шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

9

J914753

FUEL TUBE,8 mm OD x 292.3 mm L

TUBE ASSEMBLY - fuel supply, lift pump

1шт.

10

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

11

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

18

A181554

VALVE

- fuel shutoff

1шт.

19

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - hex, 9/16-24 thread

1шт.

21

222-2446

INSERT,1/4" Tube

- nylon tube

1шт.

24

A62320

TUBE

- fuel supply, 105 inch (Order A167912 and, Serial Range: cut-length)

1шт.

A167912

TUBE

- nylon, 152 inch long

1шт.

26

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply

1шт.

If dealer is looking for a hydraulic tee that connects two hydraulic tubes, please reference P/N J905364. check MUO file for applications that use this part.

1шт.

27

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

28

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

29

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

30

J914284

SPACER

- lift pump mounting

1шт.
