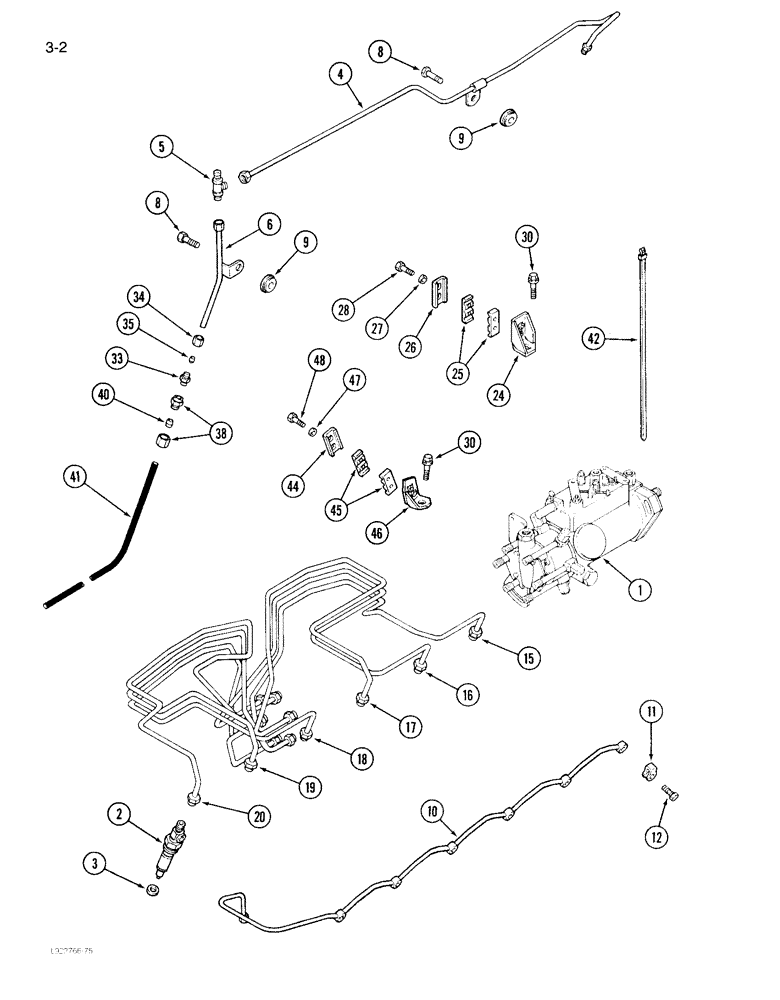

Запчасти Case IH 1640 (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 3-6)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-8 and 3-10)

6шт.

3

J920174

PACKING RING

SEAL - injector tip, 7 mm

6шт.

3

J900808

SEAL

- injector tip, 9 mm

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Assy - connecting, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

2шт.

9

J900267

SEAL

CUSHION - mounting, tube

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914043

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

16

J914044

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

17

J914090

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 3 cylinder

1шт.

18

J914045

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

19

J914046

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

20

J914091

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J917777

BRACE

- tube retaining

2шт.

25

J917747

CLAMP

ISOLATOR - tube

4шт.

26

J904519

SUPPORT

PLATE - clamp

2шт.

27

J903723

WASHER

- lock, 5 mm

4шт.

28

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, Hex Flg Hd, M8 x 1.25 x 25

2шт.

33

222-601

FITTING,3/8"-24 x 1/8" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8-24 thread x 1/8 inch PT, Includes: Ref. 34, 35

1шт.

34

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex 3/8"-24, 45º Fl, Comp

1шт.

35

222-651

SLEEVE,3/16" Tube, Comp

1шт.

38

222-2665

PORT

CONNECTOR ASSEMBLY - straight, 7/16-24 thread x 1/8 inch PT, Includes: Nut & Ref. 40

1шт.

222-2600

NUT

NUT - hex, 7/16-24 inch thread

1шт.

40

222-2610

SLEEVE

- 1/4 inch tube

1шт.

41

NSS

NOT SOLD SEPARAT

TUBE - fuel, nylon 104 inch (Order L108947 and, Serial Range: cut-length)

1шт.

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- nylon bulk

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

44

J904519

SUPPORT

PLATE - clamp

1шт.

45

J917747

CLAMP

ISOLATOR - fuel tube

2шт.

46

J917778

BRACE

- fuel tube

1шт.

47

J903723

WASHER

- flat

2шт.

48

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.
