(2-56) - ENGINE GASKET KITS, 6TA-590 ENGINE, VALVE GRIND KIT

Запчасти Case IH 1640 (2-56) - ENGINE GASKET KITS, 6TA-590 ENGINE, VALVE GRIND KIT (01) - ENGINE

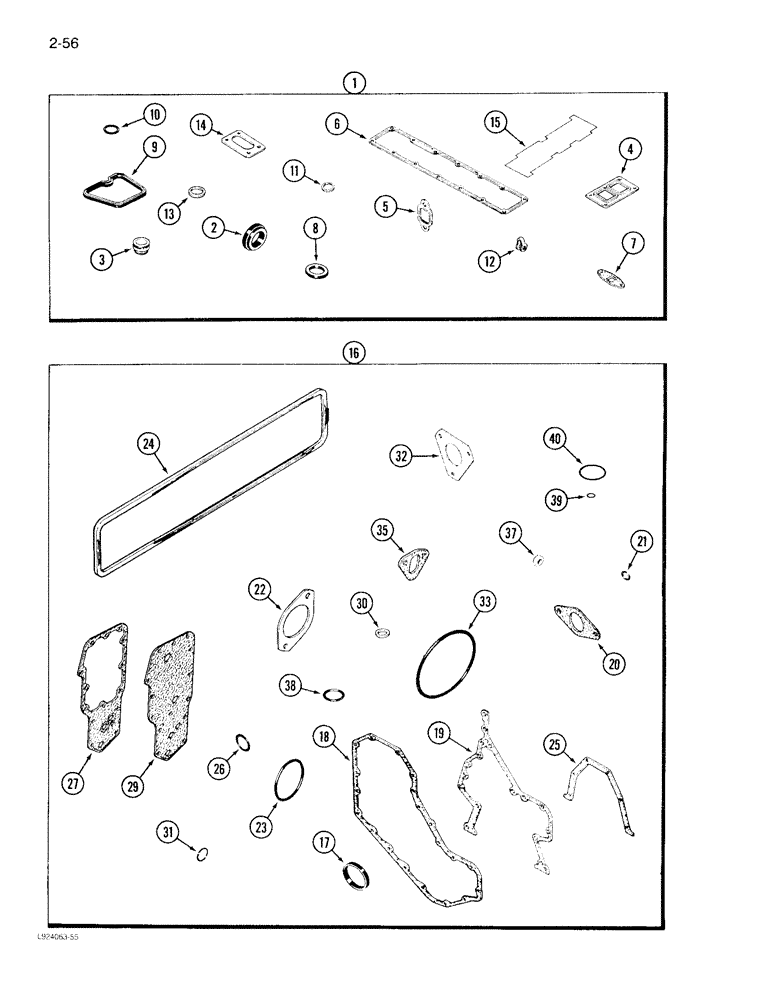

Схема запчастей Case IH 1640 - (2-56) - ENGINE GASKET KITS, 6TA-590 ENGINE, VALVE GRIND KIT (01) - ENGINE
30
13
35
17
10
23
19
37
9
8
15
7
24
32
33
11
6
14
27
18
3
39
5
40
31
29
25
12
26
1
38
16
2
4
21
20
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A77793

GASKET KIT

- valve grind (See Note A) (Replaces A77675), Includes: Ref. 2 - 15

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-30.

1шт.

2

J920020

GASKET

- thermostat housing

1шт.

3

J901097

SEAL

- valve stem

12шт.

4

J901356

GASKET,0.5mm Thk

- turbocharger mounting

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- drain tube, turbocharger

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

_ cover, rocker arm

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J900808

SEAL

- injector tip, 9 mm

6шт.

11

J920174

PACKING RING

SEAL - injector tip, 7 mm

6шт.

12

J903380

SEAL

- connector, banjo

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- injector body, 7 mm

6шт.

14

J914856

GASKET,1.02mm Thk

- connection, air crossover

1шт.

15

J823921

GAUGE

- cylinder head bolt length

1шт.

16

A77674

GASKET KIT

- engine block (See Note B), Includes: Ref. 16 - 40

1шт.

For complete engine overhaul, order one valve grind kit, one cylinder block kit, one oil pan kit Figure 2-54 and required cylinder head gasket Figure 2-30.

1шт.

17

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, turbocharger, cylinder block kit

1шт.

18

J914385

GASKET,1.02mm Thk

- front cover, cylinder block kit

1шт.

19

J916131

GASKET

- gear housing, cylinder block kit

1шт.

20

J905595

GASKET

- pin housing, timing, cylinder block kit

1шт.

21

J913994

O-RING

- timing pin, cylinder block kit

1шт.

22

J919601

GASKET

- cover plate, accessory (Replaces J913192), cylinder block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J907617

GASKET

- tappet cover, cylinder block kit

1шт.

25

J914386

GASKET

- seal retainer, cylinder block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - water inlet, cylinder block kit

1шт.

29

J918257

GASKET

- filter head, oil, cylinder block kit

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, filter head, cylinder block kit

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, oil filter, cylinder block kit

1шт.

32

J914389

GASKET

- pump mounting, fuel, cylinder block kit

1шт.

27

J918256

GASKET

- cooler core, oil, cylinder block kit

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing, cylinder block kit

1шт.

35

J914304

GASKET

- mounting, fuel pump, cylinder block kit

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt, tappet, cylinder block kit

6шт.

38

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Cylinder block kit -212, 70 Duro, .859" ID x .139" Thk

1шт.

39

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID, cylinder block kit

1шт.
