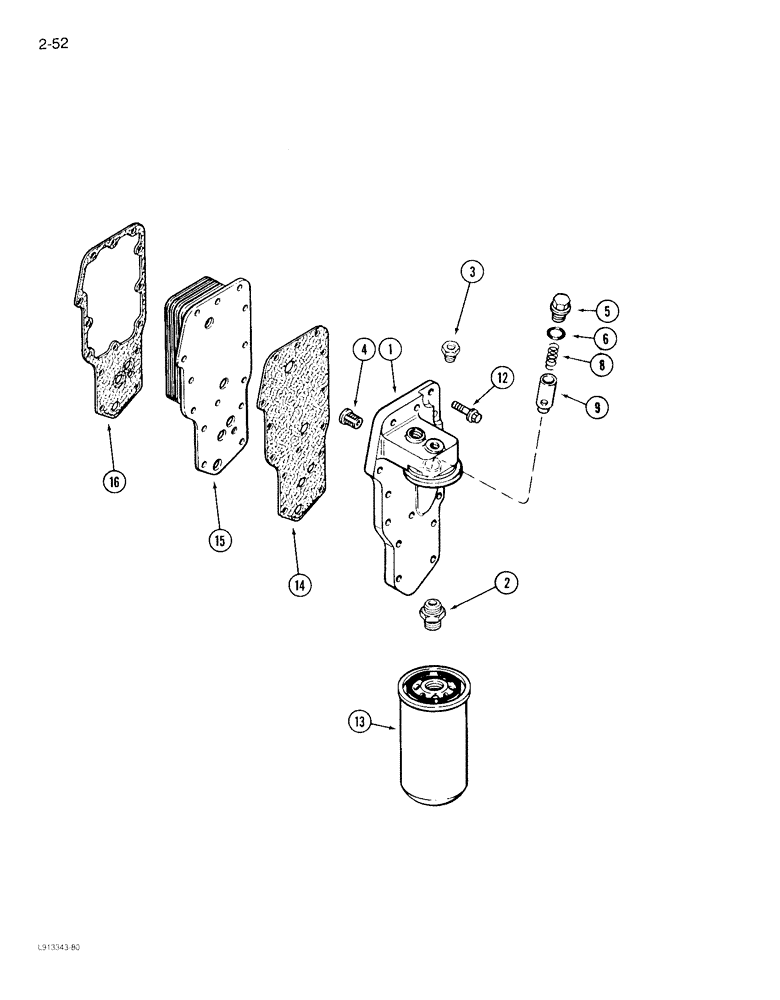

Запчасти Case IH 1640 (2-52) - OIL FILTER AND COOLER, 6TA-590 ENGINE (01) - ENGINE

1

J918954

HEAD

ASSEMBLY - lubrication filter, Includes: Ref. 2

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

2

J909355

ADAPTER

- filter head

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

3

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

5

J915787

PLUG

- regulator valve

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

6

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

WASHER - seal

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

A77764

PACKAGE

KIT - oil pressure regulator, Includes: Ref. 8, 9

1шт.

8

J918427

SPRING

- compression

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

9

J918428

PLUNGER

- regulator, pressure

1шт.

Part of oil cooler cover kit P/N J915766

1шт.

12

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm

14шт.

13

J908615

FILTER

- engine oil (Cartridge)

1шт.

14

J918257

GASKET

- filter head

1шт.

15

J921558

COOLER

CORE - cooler, oil (Replaces J911940)

1шт.

16

J918256

GASKET

- cooler core

1шт.

J915766

KIT

- oil cooler cover, Includes: Ref. 1, 2, 4, 5, 6, 8 and 9

1шт.
