Запчасти Case IH 1640 (2-48) - FLYWHEEL, 6TA-590 ENGINE (01) - ENGINE

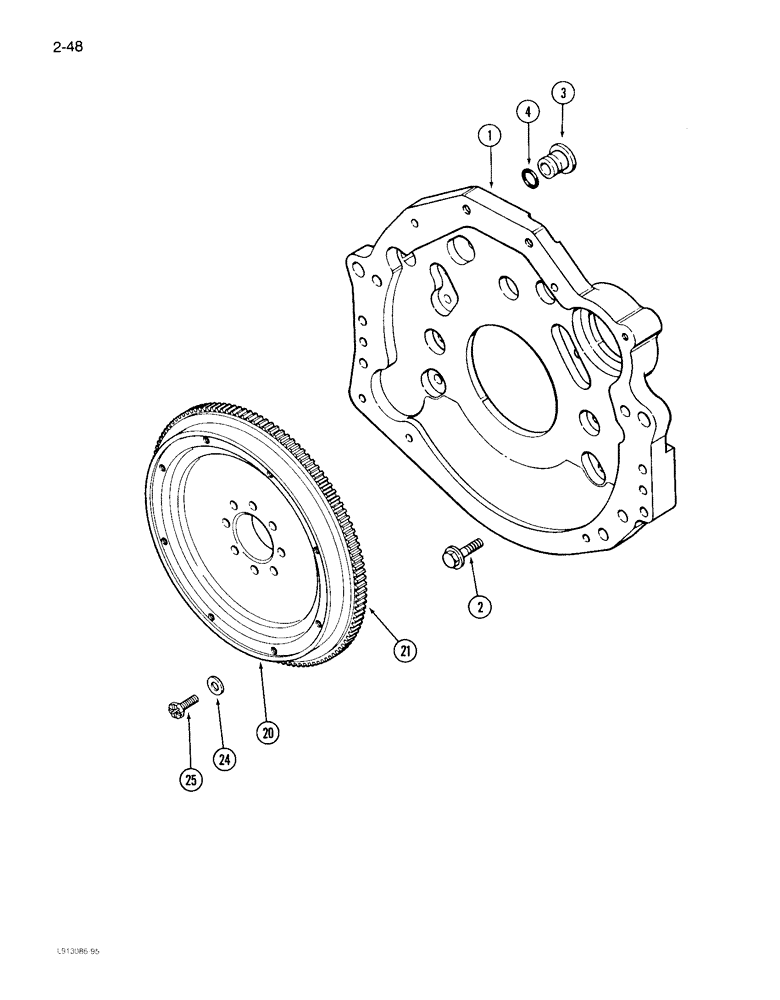

Схема запчастей Case IH 1640 - (2-48) - FLYWHEEL, 6TA-590 ENGINE (01) - ENGINE
20
21
25
2
24
1
4
3

Артикул

Название

Примечание

Количество

1

J913592

PLATE

- backing

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 40 mm, Cl 10.9

8шт.

3

J910248

PLUG

- backing plate

1шт.

4

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J917052

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 21

1шт.

21

J905427

GEAR

- ring, flywheel

1шт.

24

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

25

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 50 mm

8шт.

Выбрано товаров: 8
