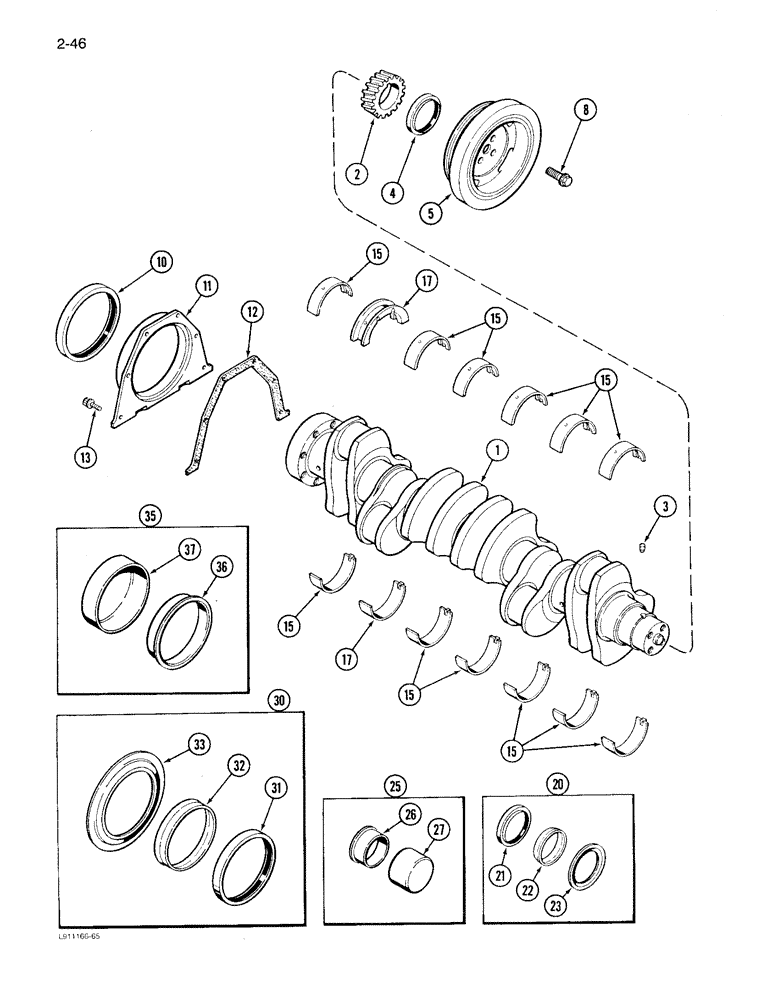

Запчасти Case IH 1640 (2-46) - CRANKSHAFT, 6TA-590 ENGINE (01) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine, remanufactured (North America only)

1шт.

JC918324

CRANK

RETURN NUMBER - crankshaft assembly (Use this part number return crankshaft core for credit)

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2, 3

1шт.

2

J919681

PINION

GEAR - crankshaft (Replaces J912883)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref 20)

1шт.

5

NLS

NO LONGER SERVICED

PULLEY - crankshaft dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, 12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref. 30)

1шт.

11

J921043

REAR COVER

RETAINER - rear seal (Replaces J913447)

1шт.

12

J914386

GASKET

- seal retainer

1шт.

13

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main, upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main, upper and lower, 0.25 mm oversize

6шт.

15

A77474

BEARING SET

BEARING KIT - main, upper and lower, 0.5 mm oversize

6шт.

15

A77476

BEARING SET

BEARING KIT - main, upper and lower, 0.75 mm oversize

6шт.

15

A77478

BEARING SET

BEARING KIT - main, upper and lower, 1.00 mm oversize

6шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT - thrust, main upper and lower, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT - thrust, main upper and lower, 0.25 mm oversize

1шт.

17

A77475

THRUST BEARING

BEARING KIT - thrust, main upper and lower, 0.50 mm oversize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main upper and lower, 0.75 mm oversize

1шт.

17

A77479

THRUST BEARING

BEARING KIT - thrust, main upper and lower, 1.00 mm oversize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909411

SEAL

KIT - oil, crankshaft rear (Wet), Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, crankshaft rear (Dry), Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
