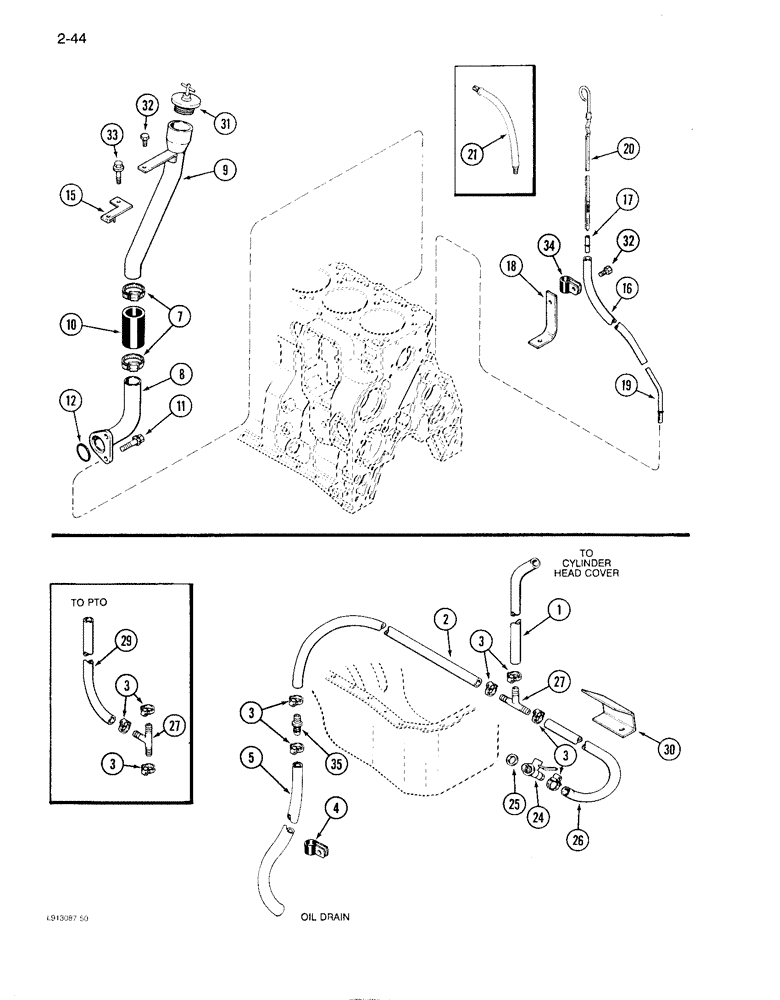

Запчасти Case IH 1640 (2-44) - CYLINDER BLOCK ATTACHING PARTS (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 660 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - breather, intermediate, 815 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, N0. 10 type F (Quantity of 6 when Ref 35 is used)

7шт.

4

A185958

CLAMP,7/8", 1/2" Bolt

- hose retaining

3шт.

5

NSS

NOT SOLD SEPARAT

HOSE - breather, lower, 1850 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

7

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

retaining #24, 1.06/2.00 Type F Worm

2шт.

8

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill

1шт.

9

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill extension

1шт.

10

J912686

HOSE,38.1mm ID x 84mm L

Fill,Oil 1.50 mm ID x 84.00 mm

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

2шт.

12

J906704

O-RING

- sealing

1шт.

15

J912683

TUBE

BRACKET - support, upper

1шт.

16

J905800

TUBE

- dipstick, oil (If equipped)

1шт.

17

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube (If equipped)

1шт.

18

J914644

BRACE

- tube

1шт.

19

J908308

TUBE,9.52 mm OD x 124.1, 44 mm L

- dipstick (If equipped)

1шт.

20

J907680

DIPSTICK

ASSEMBLY - oil level

1шт.

21

J918388

TUBE

- dipstick (If equipped)

1шт.

24

1330429C1

DRAIN VALVE

VALVE - oil drain

1шт.

25

J900216

PACKING RING

WASHER - sealing

1шт.

26

1329978C3

HOSE

- oil drain 430 mm (17 in)

1шт.

27

1977169C1

TEE

- oil drain (Quantity of 1 when Ref 35 is used)

2шт.

29

NSS

NOT SOLD SEPARAT

HOSE - PTO drain, 215 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

30

1977220C1

ANGLE

BRACKET - oil drain shield

1шт.

31

A77424

FILLER CAP

CAP - oil filler

1шт.

32

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

2шт.

33

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

34

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose retaining

1шт.

35

1301342C1

FITTING

CONNECTOR - oil drain

1шт.
