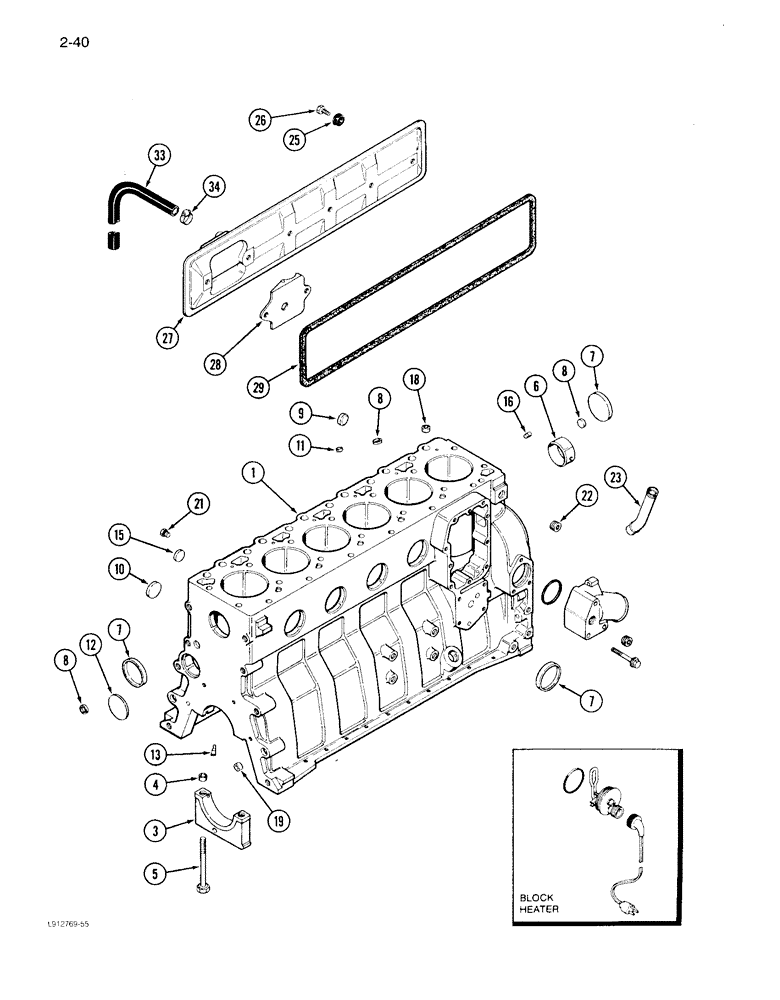

Запчасти Case IH 1640 (2-40) - CYLINDER BLOCK, 6TA-590 ENGINE, ENGINE SERIAL NO. 44566928 & AFTER (01) - ENGINE

1989103C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

1989103C2R

REMAN-REPLACEMENT EN

Reman For New P/N 1989103C2

1шт.

6TA-590C

CORE-REPLACEMENT ENG

Return Number

1шт.

1989097C2

BASIC ENGINE

ENGINE BASIC - new

1шт.

Includes: all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler.

1шт.

1989097C4R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989097C4C

CORE-BASIC ENGINE

Return Number

1шт.

A77763

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings)(Also order J920399 kit)

1шт.

AR77763

BLOCK

Block Assembly - short, remanufactured

1шт.

AC77761

CORE-ENGINE

Return Number - use this part number to return block core for credit

1шт.

1

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J920399 kit), Includes: Ref. 3 - 9

1шт.

3

J900967

BEARING CAP

CAP - main bearing

7шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front (See Figure 2-34)

1шт.

7

A77782

PLUG

PLUG - expansion, 58 mm OD (Replaces J900965)

6шт.

8

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

9

23624R1

PLUG

PLUG - expansion, 26 mm

4шт.

9

A77539

PLUG

PLUG - magnetic expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

HARDWARE KIT - block, engine, Includes: Ref. 10 - 22

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, (Welch), 60 mm OD

1шт.

13

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

15

A77439

PLUG

PLUG - expansion, 0.886 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

1шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J911822

COVER

COVER - tappet

1шт.

28

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

29

J907617

GASKET

GASKET - tappet cover

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - breather, 660 mm long (Order 1977295C1, Serial Range: cut-length)

1шт.

34

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - retaining

1шт.

44

J903103

MANIFOLD

HOUSING - inlet, water

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 mm - 1.5 x 75 mm, Grade 10.9

3шт.

47

A77429

PLUG

PLUG - hex socket pipe, 1/2-14 PT

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 12 volt

1шт.

57

J905113

CABLE

CABLE - heater, block

1шт.

58

J910517

O-RING

O-RING - heater sealing

1шт.
