Запчасти Case IH 1640 (2-34) - CAMSHAFT, 6TA-590 ENGINE (01) - ENGINE

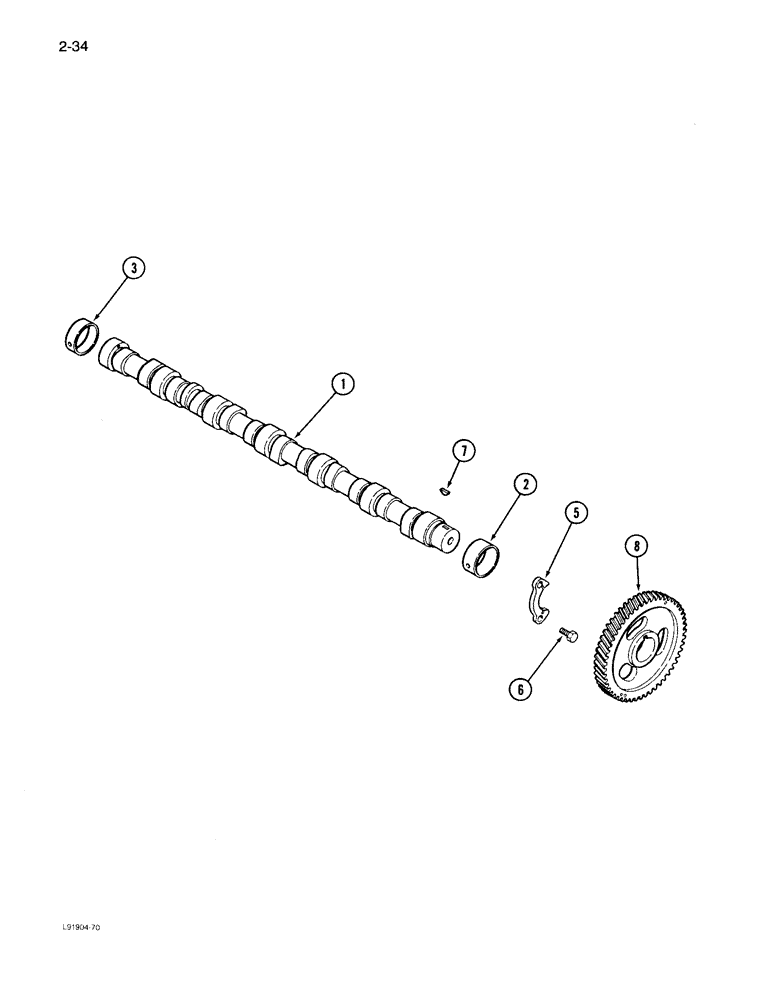

Схема запчастей Case IH 1640 - (2-34) - CAMSHAFT, 6TA-590 ENGINE (01) - ENGINE
5
7
8
2
6
3
1

Артикул

Название

Примечание

Количество

1

J914639

CAMSHAFT

- engine

1шт.

J929042R

REMAN-CAMSHAFT

1640 S/N JJC0034705 & AFTER (1/86 - 12/92), Reman for New P/N J914639

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front, standard

1шт.

2

J904369

BUSHING

- camshaft front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear

6шт.

When the intermediate and the rear cylinder block camshaft bores are reamed in repair, use J903242 bushings.

1шт.

5

J914641

SUPPORT

- thrust, camshaft

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

J902332

KEY

- retainer, camshaft gear

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.

Выбрано товаров: 11
