Запчасти Case IH 1640 (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE

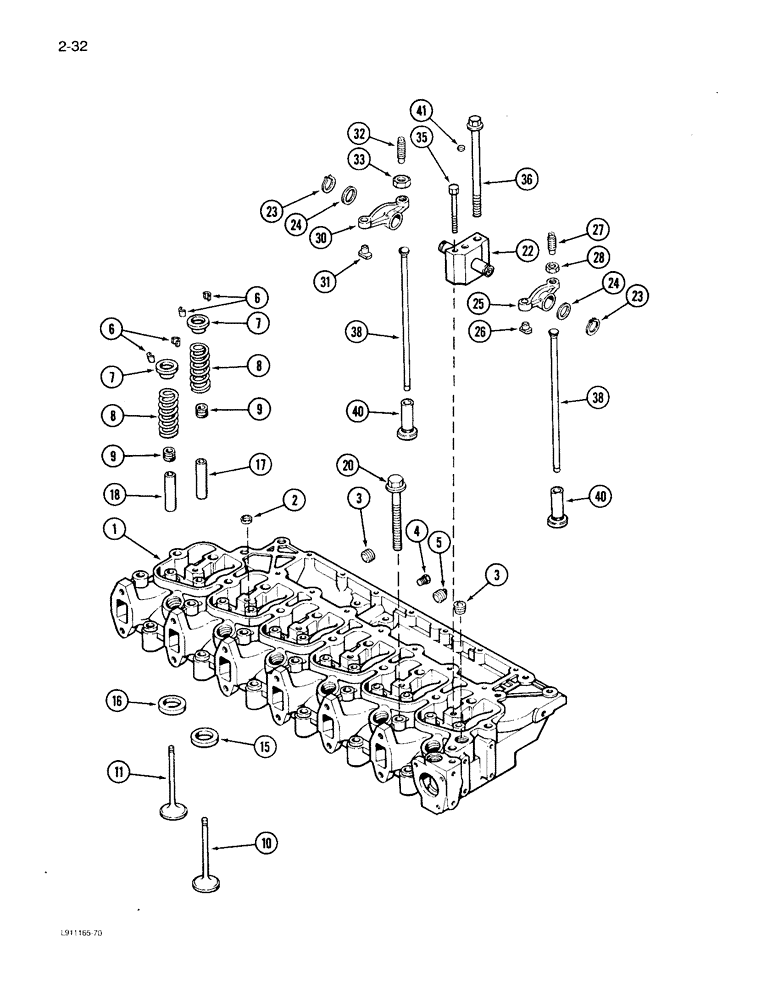

Схема запчастей Case IH 1640 - (2-32) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE
35
3
36
7
23
6
2
30
15
31
8
23
17
20
9
4
5
28
18
24
25
26
11
7
38
27
6
41
8
22
24
9
1
10
40
3
32
33
40
38
16

Артикул

Название

Примечание

Количество

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured (North America only)

1шт.

Used with 7 mm injector. Used Engine Serial Number 44566928 and after.

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit

1шт.

Used with 7 mm injector. Used Engine Serial Number 44566928 and after.

1шт.

JR910276

HEAD

ASSEMBLY - cylinder, remanufactured (North America Only)

1шт.

Used with 9 mm injector. Used prior to Engine Serial Number 44566928.

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit

1шт.

Used with 9 mm injector. Used prior to Engine Serial Number 44566928.

1шт.

1

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, Includes: Ref. 1 - 11

1шт.

Used with 7 mm injector. Used Engine Serial Number 44566928 and after.

1шт.

1

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, Includes: Ref. 1 - 11

1шт.

Used with 9 mm injector. Used prior to Engine Serial Number 44566928.

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 9

1шт.

Used with 7 mm injector. Used Engine Serial Number 44566928 and after.

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 9

1шт.

Used with 9 mm injector. Used prior to Engine Serial Number 44566928.

1шт.

2

J902606

PLUG

- expansion, 21 mm OD

5шт.

3

A77429

PLUG

- hex socket pipe, 1/2-18 inch PT

5шт.

4

A77427

PLUG

- hex socket pipe, 1/8-27 inch PT

2шт.

5

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve stem

12шт.

10

J920867

VALVE

- intake (Replaces J901117)

6шт.

11

J920868

VALVE

- exhaust (Replaces J901607)

6шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

17

J906206

GUIDE

- valve, intake, 11 mm OD (Service repair only)

6шт.

17

J904408

GUIDE

- valve, intake, 14 mm OD (Service repair only)

6шт.

18

J906206

GUIDE

- valve, exhaust, 11 mm OD (Service repair only)

6шт.

18

J904409

GUIDE

- valve, exhaust, 14 mm OD (Service repair only)

6шт.

20

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - hex flange, 12 mm - 1.75 x 70 mm (Replaces J903938)

6шт.

20

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- hex flange, 12 mm - 1.75 x 120 mm (Replaces J903939)

14шт.

22

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

24

J900245

WASHER

- thrust, rocker arm

12шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 31 - 33

6шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

35

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex flange, 8 x 75 mm

6шт.

36

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - hex flange, 12 mm - 1.75 x 180 mm (Replaces J903940)

6шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

40

J907240

TAPPET

- valve, push rod

12шт.

41

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

6шт.

J280911

WEAR PAD

1шт.

P/N J280911 Pad, Wear, Valve Stem.

1шт.

Выбрано товаров: 52
