Запчасти Case IH 1640 (2-30) - CYLINDER HEAD COVERS AND GASKET, 6TA-590 ENGINE (01) - ENGINE

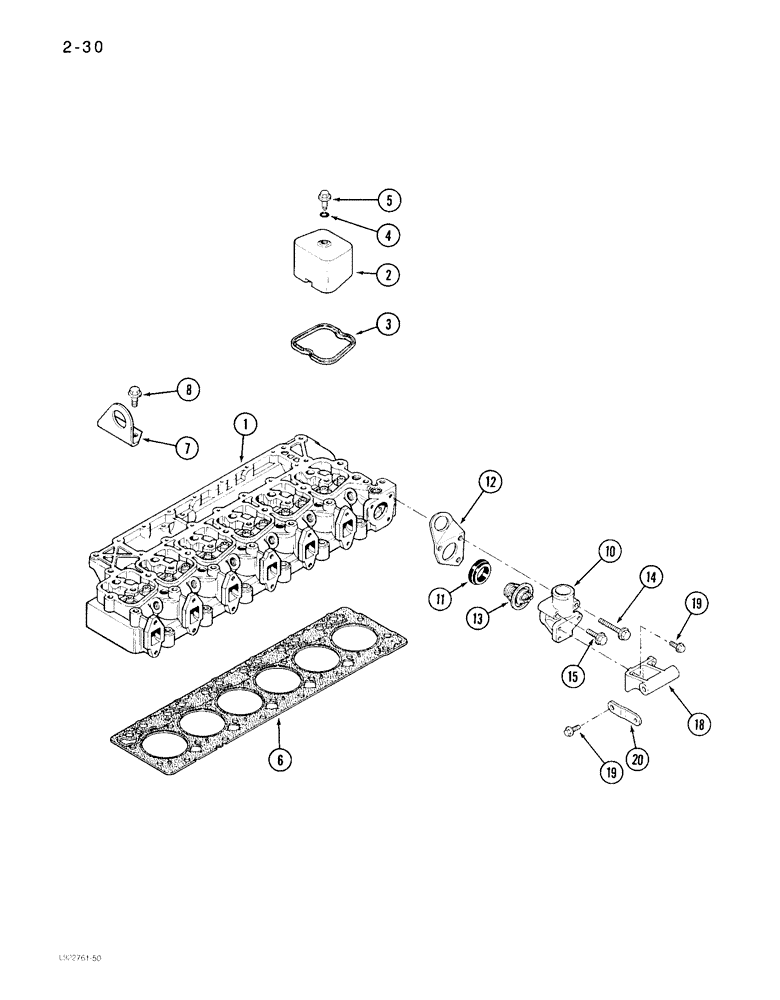

Схема запчастей Case IH 1640 - (2-30) - CYLINDER HEAD COVERS AND GASKET, 6TA-590 ENGINE (01) - ENGINE
8
20
6
19
4
18
12
2
7
10
5
14
19
11
1
3
15
13

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder (See Figure 2-32)

1шт.

2

J902604

COVER

- rocker, valve

6шт.

3

J902666

GASKET

SEAL - rocker cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J907049

BOLT,Hex

- hex flange, 8 x 21 mm

6шт.

6

J921394

GASKET

- head, standard ( 1 Notch) (Replaces J918305)

1шт.

6

J921396

CYLINDER HEAD GASKET

- head, 0.25 mm overthick (2 Notches) (Replaces J918306)

1шт.

6

J921398

GASKET

- head, 0.50 mm overthick (3 Notches) (Replaces J918307)

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex, 12 mm - 1.75 x 25 mm

2шт.

10

J914409

HOUSING

- thermostat

1шт.

11

J920020

GASKET

- housing, thermostat

1шт.

Part of thermostat kit P/N A77736

1шт.

12

J903757

BRACKET

- lifting, front, housing and thermostat

1шт.

13

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, 95 degree C (Order A77736)

1шт.

Part of thermostat kit P/N A77736

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Housing and thermostat

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Housing and thermostat

1шт.

18

J917484

BRACE

SUPPORT - alternator mounting, housing and thermostat

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Housing and thermostat

4шт.

20

J903104

PLATE

BRACE - alternator mounting, housing and thermostat

1шт.

A77736

THERMOSTAT

KIT - water, 95 degree C Includes Ref. 11 and 13, housing

1шт.

Выбрано товаров: 22
