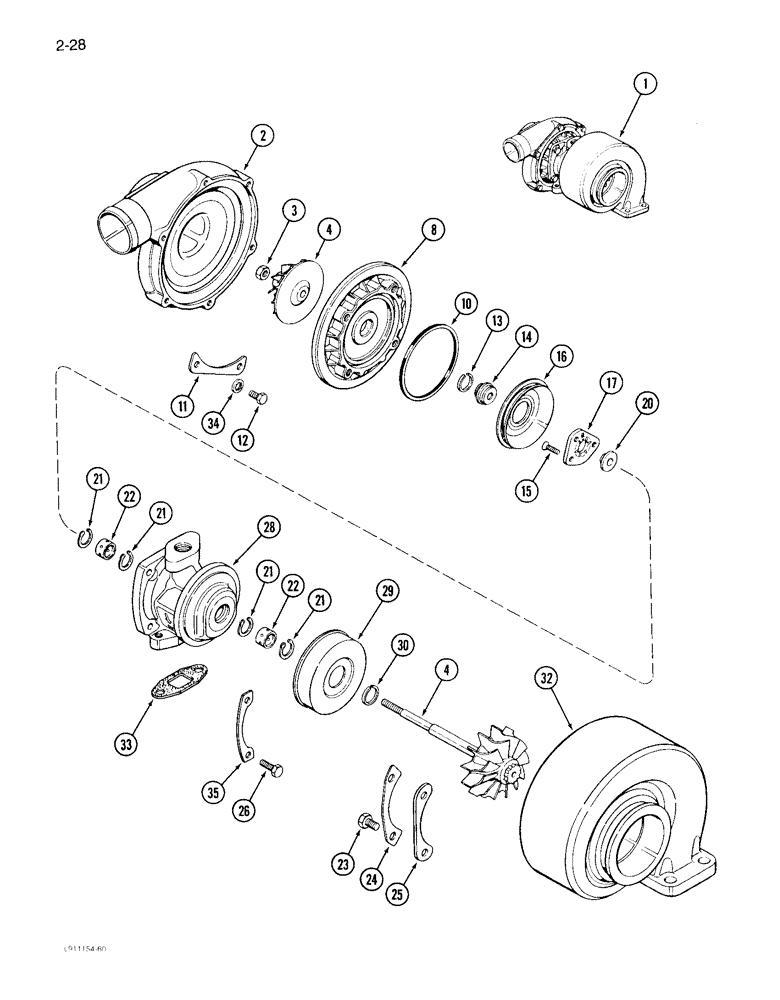

Запчасти Case IH 1640 (2-28) - TURBOCHARGER, 6TA-590 ENGINE (01) - ENGINE

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new (Replaces J907028), Includes: Ref. 1 - 35

1шт.

1

JR802289

REMAN-TURBOCHARGER

1640 SN JJC0034705 & Aft., Reman For New P/N J919113

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Turbocharger Assembly - Remanufactured

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number - use this part number to return turbocharger core for credit

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clamping, diffuser

3шт.

12

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY - hex lock

6шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - slit ring, compressor

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

14

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - flat head torx

3шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - cap

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT AND WASHER ASSEMBLY - hex lock

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

29

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock

6шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

J904772

PACKAGE, REPAIR

OVERHAUL KIT - turbocharger, Includes: Ref. 3, 10, 12, 13, 15, 17, 21, 22, 23, 24, 26, 30, 33, 34 and 35

1шт.
