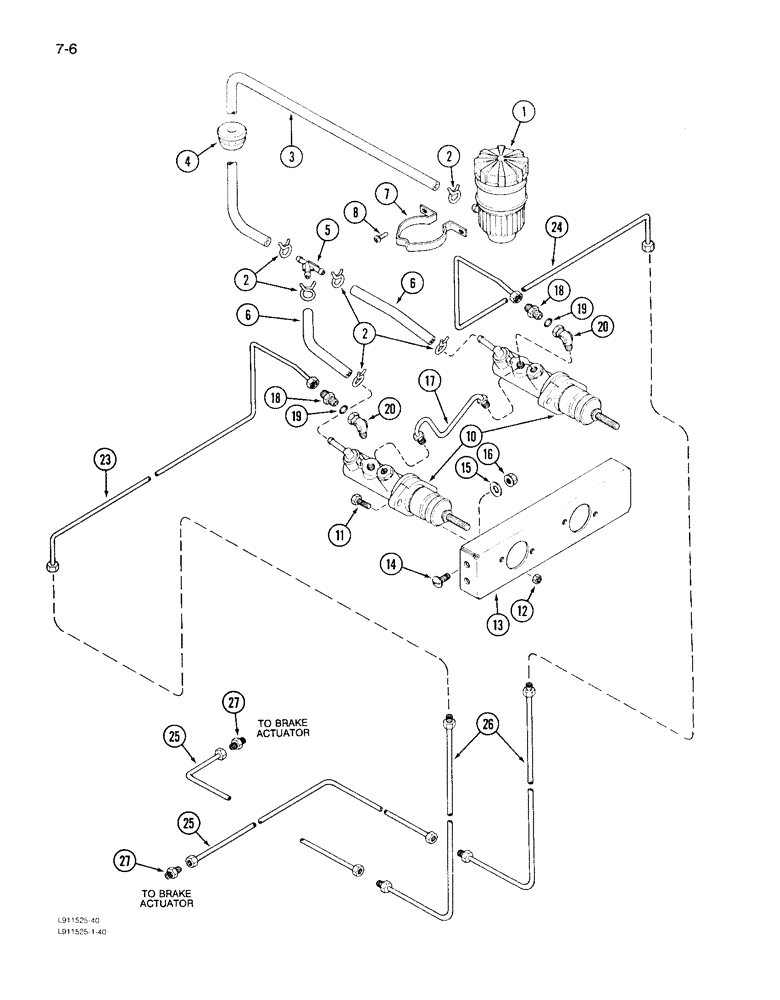

Запчасти Case IH 1640 (7-06) - MASTER BRAKE CYLINDERS RESERVOIR, CONNECTIONS AND MOUNTING (5.1) - BRAKES

1

1281890C2

RESERVOIR

- brake fluid

1шт.

1

K964488

CAP

- reservoir, brake fluid

1шт.

2

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - wire hose, No. 8 type E

6шт.

3

1281889C1

HYDRAULIC HOSE,6.35 mm ID x 610.00 mm

- Return 6.35 mm ID x 610.00 mm

1шт.

4

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

5

1285312C1

TEE

- Y Type

1шт.

6

1281888C1

HYDRAULIC HOSE,6.35 mm ID x 150.00 mm

- Return 6.35 mm ID x 150.00 mm

2шт.

7

1281891C1

CLAMP

- brake fluid reservoir

1шт.

8

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slot, polyseal 1/2 inch

2шт.

10

REF

INSTRUCTION

CYLINDER - master (See Figure 7-08)

2шт.

11

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

4шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

13

1327561C2

SUPPORT

- master brake cylinder

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 x 3/4 inch

3шт.

14

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss head, 3/8 NC x 1-1/4 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

17

1281885C1

PIPE

TUBE - equalizer

1шт.

18

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread 1/4 tube 7/16-20 thread

2шт.

19

237-3004

O-RING,0.351" ID x 0.072" Width

4-1, Cl 3, .351" ID x .072" Thk

2шт.

20

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree swivel, 1/4 tube 7/16-20 x 1/4 tube 7/16-2 1/4 tube 7/16-20 thread

2шт.

23

1321476C2

HYD TUBE

TUBE - brake, upper right

1шт.

24

1321475C2

HYD TUBE

TUBE - brake, upper left

1шт.

25

1321512C1

HYD TUBE,0.25" OD, 360, 65 mm Length

TUBE - brake, lower

2шт.

26

1321511C2

HYD TUBE

TUBE - brake, middle

2шт.

27

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 7/16-20 thread x 1/8 inch PT

2шт.
