Запчасти Case IH 1640 (9F-14) - STRAW CHOPPER GEAR HOUSING (CONTD) (19) - STRAW SPREADER & CHOPPER

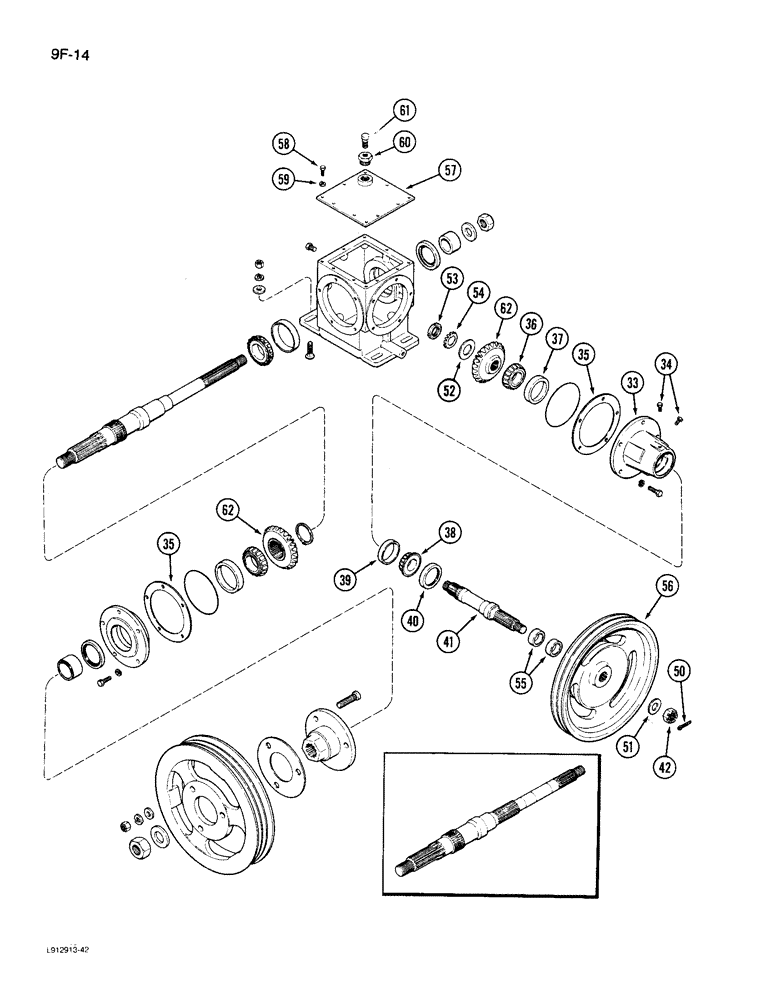

Схема запчастей Case IH 1640 - (9F-14) - STRAW CHOPPER GEAR HOUSING (CONTD) (19) - STRAW SPREADER & CHOPPER
35
34
59
53
41
36
58
57
54
50
35
61
37
60
55
38
33
51
42
39
56
62
40
62
52

Артикул

Название

Примечание

Количество

33

191245C2

HUB

- chopper drive

1шт.

34

444614

PLUG,Hex Hd, 1/8"-27, Brass

- chopper drive hub

1шт.

35

195484C2

SHIM KIT

KIT - shim, Includes: Shims Listed Below

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

36

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

CONE - bearing, hub inner

1шт.

37

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - bearing, hub inner

1шт.

38

G57452

ROLLER BEARING

CONE - bearing, hub outer

1шт.

39

G57451

BEARING, CUP

CUP - bearing, hub outer

1шт.

40

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- chopper drive shaft oil

1шт.

41

181195C1

SHAFT

- chopper drive

1шт.

42

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF

1шт.

50

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

51

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

52

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

1шт.

53

271253

NUT

- bearing lock

1шт.

54

181268C1

BEARING WASHER,1.193" ID x 1.95" OD

WASHER - drive shaft bearing lock

1шт.

55

181156C1

SPACER

- drive shaft

2шт.

56

1315264C1

PULLEY

- chopper drive, 7 and 14 inch OD

1шт.

57

181281C1

COVER

- gear housing

1шт.

58

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

59

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

60

115224

ADAPTER

- hex pipe, 3/4 to 3/8 inch

1шт.

61

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING - grease with felt washer, 3/8 inch PTF

1шт.

188814C1

BEVEL GEAR

GEAR KIT - matched set, Includes: Ref. 62

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - 24 teeth (Order 188814C1)

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - 23 teeth (Order 188814C1)

1шт.

Выбрано товаров: 28
