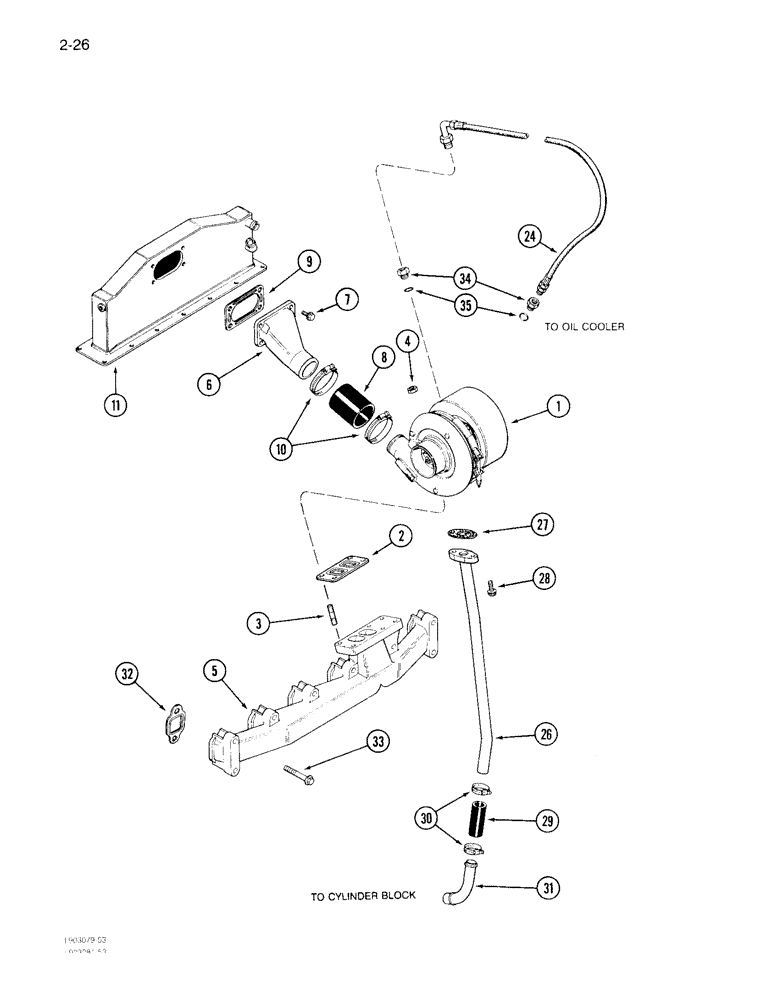

Запчасти Case IH 1640 (2-26) - TURBOCHARGER SYSTEM, 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See figure 2-28)

1шт.

2

J901356

GASKET,0.5mm Thk

- mounting, turbocharger

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

5

J901683

MANIFOLD

- exhaust

1шт.

6

J906918

CONNECTION

- air crossover

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

4шт.

8

J916166

INTAKE AIR HOSE

HOSE - crossover

1шт.

9

J914856

GASKET,1.02mm Thk

- connection, crossover

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

11

REF

INSTRUCTION

AFTERCOOLER - engine (See figure 2-24)

1шт.

24

J909548

HOSE

ASSEMBLY - oil supply, turbocharger

1шт.

26

J918579

TUBE

- oil drain (Replaces J905354)

1шт.

27

J914388

GASKET

- drain tube

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

2шт.

29

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

30

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

31

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

32

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

33

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm, Grade 10.9

12шт.

34

J919687

HYD CONNECTOR

CONNECTOR ASSEMBLY - female (Replaces J916857), Includes: Ref. 35

2шт.

35

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
