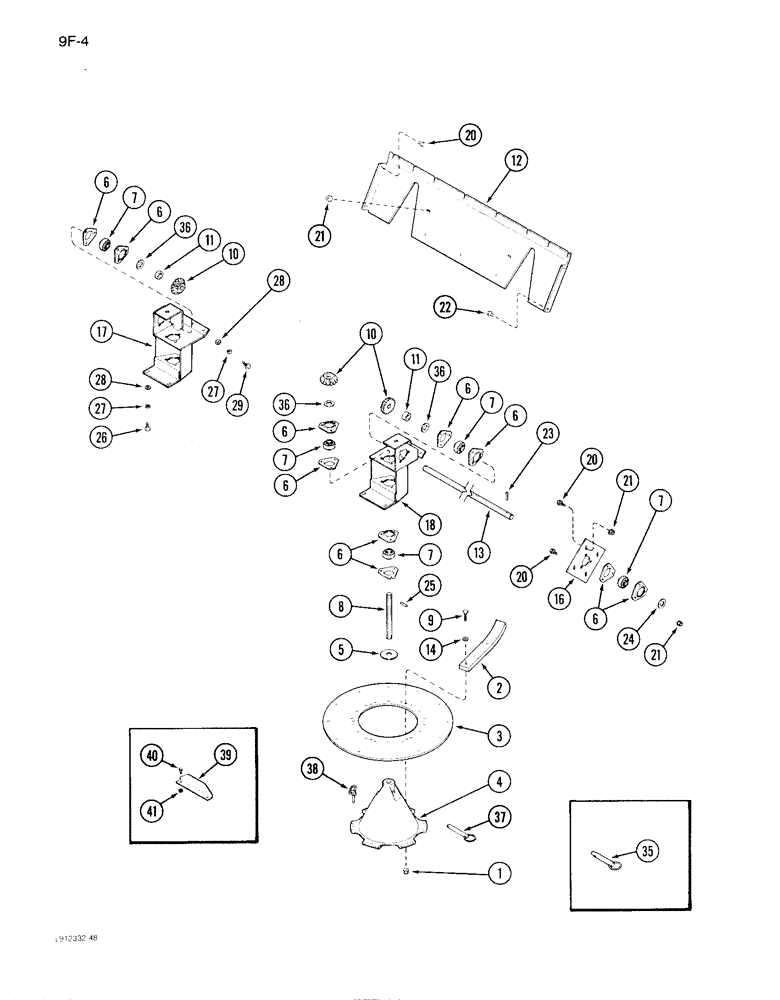

Запчасти Case IH 1640 (9F-04) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - strip

24шт.

2

1994767C1

RUBBER STRIP

STRIP - straw spreader rubber (2 hole, 250 mm long)

12шт.

2

194198C2

SKID/SHOE

STRIP - straw spreader rubber (3 hole, 290 mm long)

12шт.

3

1994769C1

DISC

RETAINER - straw spreader strip (12 and 36 hole)

2шт.

3

1322230C1

RETAINER

- straw spreader strip (12 and 24 hole)

2шт.

3

192252C1

RETAINER

- straw spreader strip (7 and 18 hole)

2шт.

4

188218C4

CONE

SUPPORT ASSEMBLY - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - support cone (If equipped)

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

BAR - straw spreader (shaft)

2шт.

9

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

24шт.

10

185410C1

GEAR-SET

GEAR SET - spreader drive (14 tooth)

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch tube (cross bar)

2шт.

12

195138C5

SUPPORT

- dust shield

1шт.

13

192242C4

SHAFT

BAR - cross (shaft)

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

24шт.

16

186506C1

SUPPORT

BAR - spreader bearing

1шт.

17

1345024C1

SUPPORT

- spreader drive, left (Replaces 1317897C2)

1шт.

18

1345025C1

SUPPORT

- speader drive, right (Replaces 1317898C2)

1шт.

20

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

28шт.

21

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

29шт.

22

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

23

138-2066

PIN,3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

7шт.

25

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

35

1319303C1

PIN

- spreader retaining (If equipped)

2шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

37

1994817C1

PIN

ASSEMBLY - lock, retainer

2шт.

38

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik, 3/16 inch

2шт.

39

1345379C1

ANGLE

BRACKET - straw spreader disc

12шт.

40

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

24шт.

41

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

24шт.
