Запчасти Case IH 1640 (9F-02) - STRAW SPREADER DRIVE (19) - STRAW SPREADER & CHOPPER

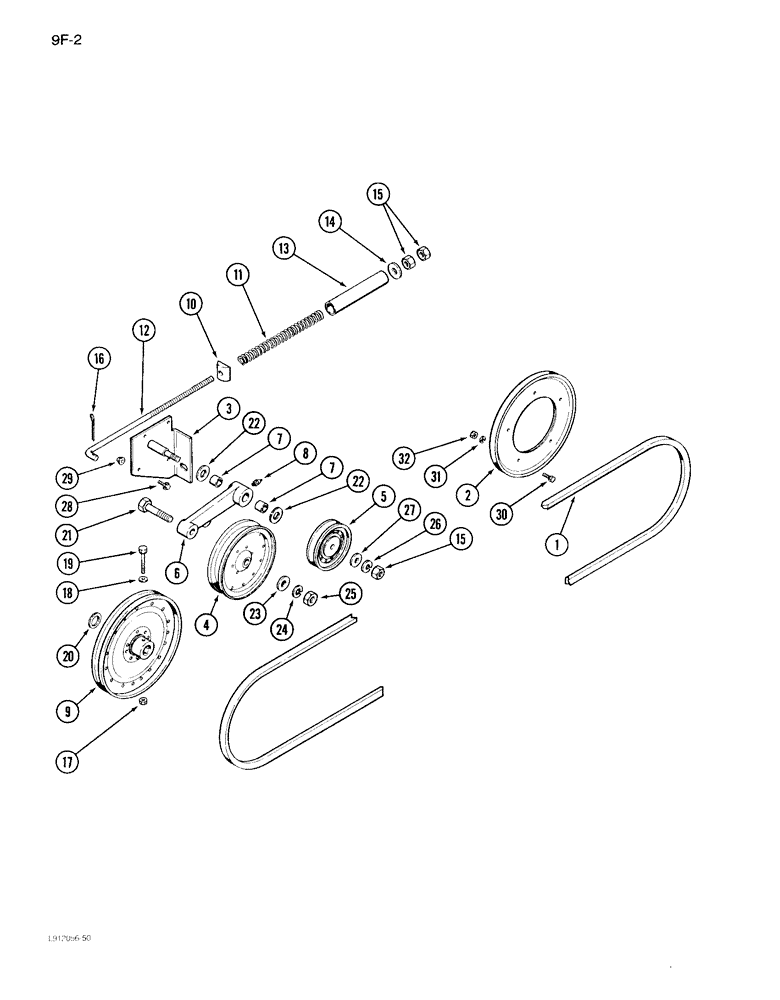

Схема запчастей Case IH 1640 - (9F-02) - STRAW SPREADER DRIVE (19) - STRAW SPREADER & CHOPPER
15
32
22
5
16
26
29
24
25
18
7
2
13
7
28
20
9
31
10
12
8
3
30
6
1
15
21
19
23
4
14
11
27
17
27

Артикул

Название

Примечание

Количество

1

196371C1

BELT,0.630" W x 222.59" L

V-BELT , Straw spreader drive 0.630" W x 222.59" L

1шт.

2

566516R91

PULLEY ASSY.

PULLEY ASSEMBLY - spreader drive, 9-3/4 inch OD

1шт.

3

1315275C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - drive tightener

1шт.

4

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- drive tightener, 6-3/4 inch OD

1шт.

4

181126C91

PULLEY

- drive tightener, 6-3/4 inch OD

1шт.

5

1315269C1

PULLEY

- drive idler, 4-3/8 inch OD

1шт.

6

181153C91

LEVER ASSY.

LEVER - tightener arm (Used with 181126C91 pulley), Includes: Ref. 7

1шт.

6

1979591C1

LEVER

- tightener arm (Used with 566518R91 pulley), Includes: Ref. 7

1шт.

7

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- drive support (Replaces 165704C1)

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

181196C2

PULLEY

- spreader driven, 10 inch OD

1шт.

9

1994772C1

PULLEY

- spreader driven, 8 inch OD

1шт.

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

10

194652C1

PIVOT

BAR - tightener rod pivot

1шт.

11

1315223C1

SPRING

- spreader drive

1шт.

12

181152C1

ROD

- spreader drive idler

1шт.

13

1315197C1

SPACER

- spreader drive

1шт.

14

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

16

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

17

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

18

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

19

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

1шт.

20

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

6шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

22

25548R1

WASHER

- hardened, 3/4 inch

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat hardened, 17/32 x 1-1/16 x 1/8 inch

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

28

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 x 3/4 inch

3шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

3шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch

5шт.

Выбрано товаров: 36
