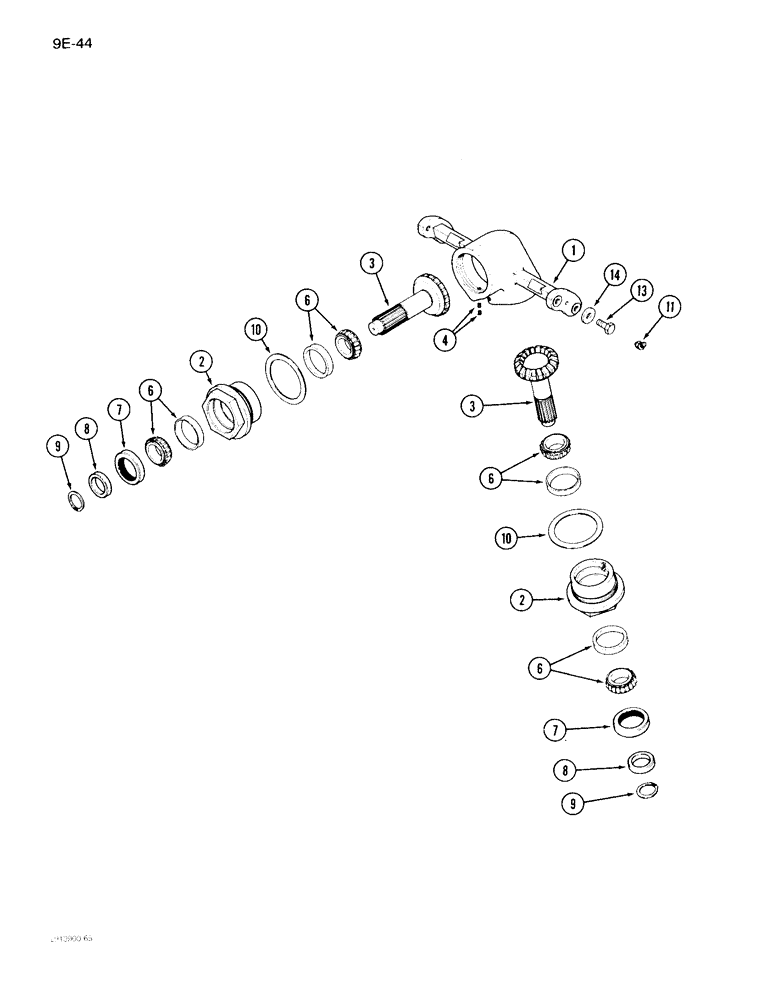

Запчасти Case IH 1640 (9E-44) - UNLOADER UPPER GEAR HOUSING, P.I.N. JJC0097103 AND AFTER (17) - GRAIN TANK & UNLOADER

1347351C1

HOUSING

ASSEMBLY - unloader upper gear, Includes: Ref. 1 - 11

1шт.

1347351C2R

REMAN-GEARBOX

1640 (S/N JJC0034705 & AFTER) (NORTH AMERICA) P.I.N. JJC0097103 AND AFTER (1/86-12/92), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - upper gear

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gear bearing

2шт.

3

1347260C1

PINION

GEAR - upper housing unloader, 18 tooth

2шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - hex socket set, 5/16 inch NC

4шт.

6

1347431C1

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

BEARING - gear housing

4шт.

7

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

- bearing housing oil

2шт.

8

1347312C1

RETAINER

- gear housing

2шт.

9

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

10

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

- upper bearing

1шт.

11

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, Grade 8

4шт.

14

366862C1

LOCK WASHER,3/8"

3/8"

4шт.
