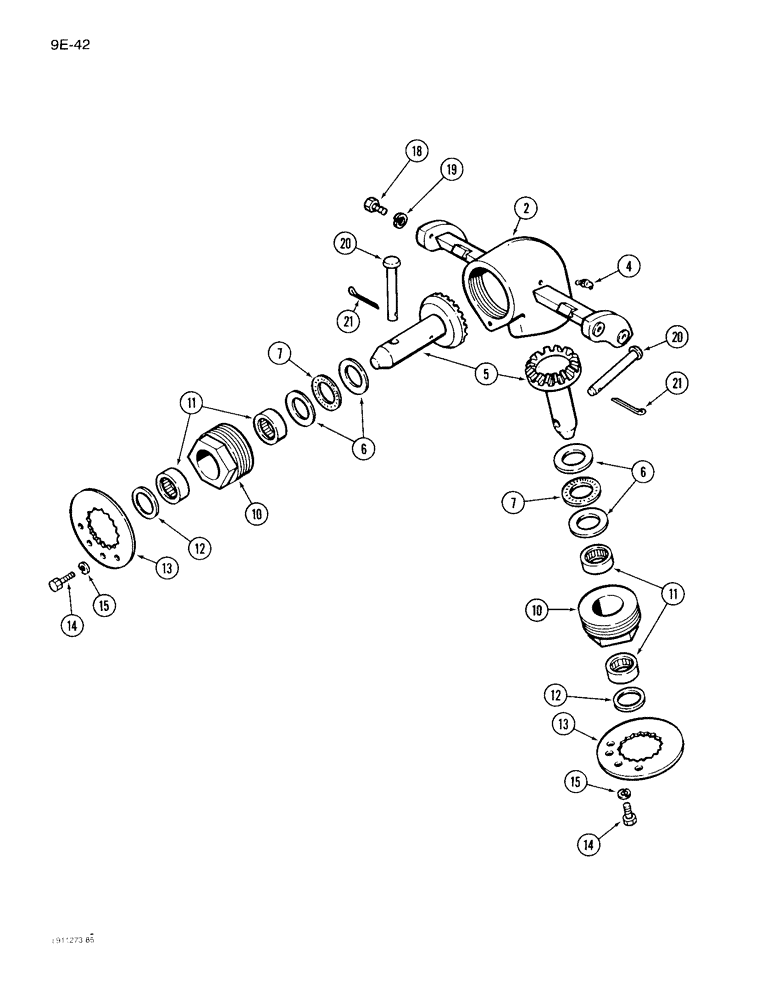

Запчасти Case IH 1640 (9E-42) - UNLOADER UPPER GEAR HOUSING, PRIOR TO P.I.N. JJC0097103 (17) - GRAIN TANK & UNLOADER

1324931C91

HOUSING

ASSEMBLY - unloader upper gear, Includes: Ref. 2 - 15

1шт.

1324931C91R

REMAN-GEARBOX

1640 S/N JJC0034705 & AFTER PRIOR TO P.I.N. JJC0097103 (1/86-12/92)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - upper gear (Order 1324931C91)

1шт.

4

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree

1шт.

5

1324929C1

GEAR

- unloader, upper housing

2шт.

6

607147R1

WASHER

WASHER - bearing

4шт.

7

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- upper gear

2шт.

10

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

HOUSING - gear bearing, Includes: Ref. 11, 12

2шт.

11

D66348

NEEDLE BEARING,Needle, 34.92mm ID x 41.27mm OD x 12.7mm W

BEARING - bearing housing

2шт.

12

179014C91

OIL SEAL

- bearing housing oil

1шт.

13

178138C1

RETAINER

- gear housing

2шт.

14

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 5/8 inch

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex, 3/8 NC x 3/4 inch, Grade 8

4шт.

19

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

20

1327766C1

PIN

- unloader gear

2шт.

21

28346R1

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), 3/16" x 1", Stainless

2шт.
