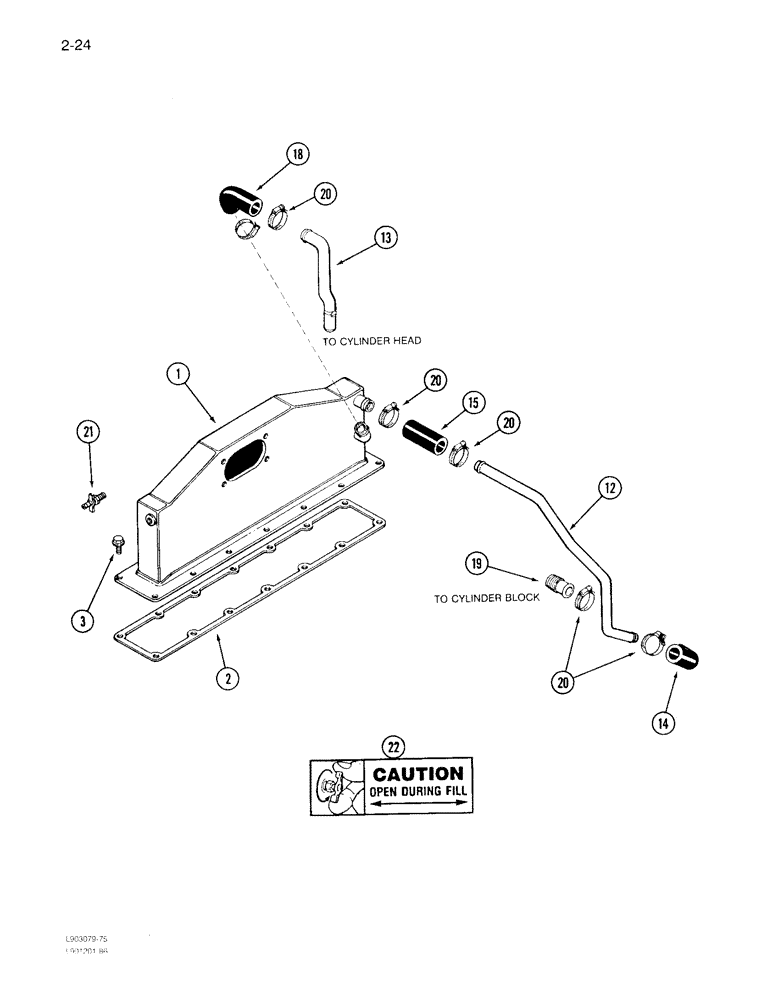

Запчасти Case IH 1640 (2-24) - AFTERCOOLER, 6TA-590 ENGINE (01) - ENGINE

JR903429

REMAN-OIL COOLER

AFTERCOOLER ASSEMBLY - engine, remanufactured (North America Only)

1шт.

JC903429

CORE-OIL COOLER

RETURN NUMBER - aftercooler (Use this part number to return aftercooler core for credit)

1шт.

1

J919806

AFTERCOOLER

ASSEMBLY - intake, new

1шт.

2

J914029

GASKET

- mounting

1шт.

3

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, 8 x 16 mm

16шт.

12

J914855

TUBE,0.75" OD

- supply, aftercooler (Replaces J907168)

1шт.

13

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- drain, aftercooler

1шт.

14

J918607

HOSE,43.20 mm

Block to Supply Tube, Replaces J917793 43.20 mm

1шт.

15

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler Replaces J917791 18.50 mm ID x 63.00 mm

1шт.

18

J918608

HOSE,18.50 mm ID x 69.50 mm

- aftercooler to drain tube (Replaces J917792)

1шт.

19

J907167

SPLINED COUPLING

COUPLING - supply hose

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

6шт.

21

J909394

COCK, DRAIN

VALVE - drain

1шт.

22

J910778

DECAL

- fill, engine

1шт.
