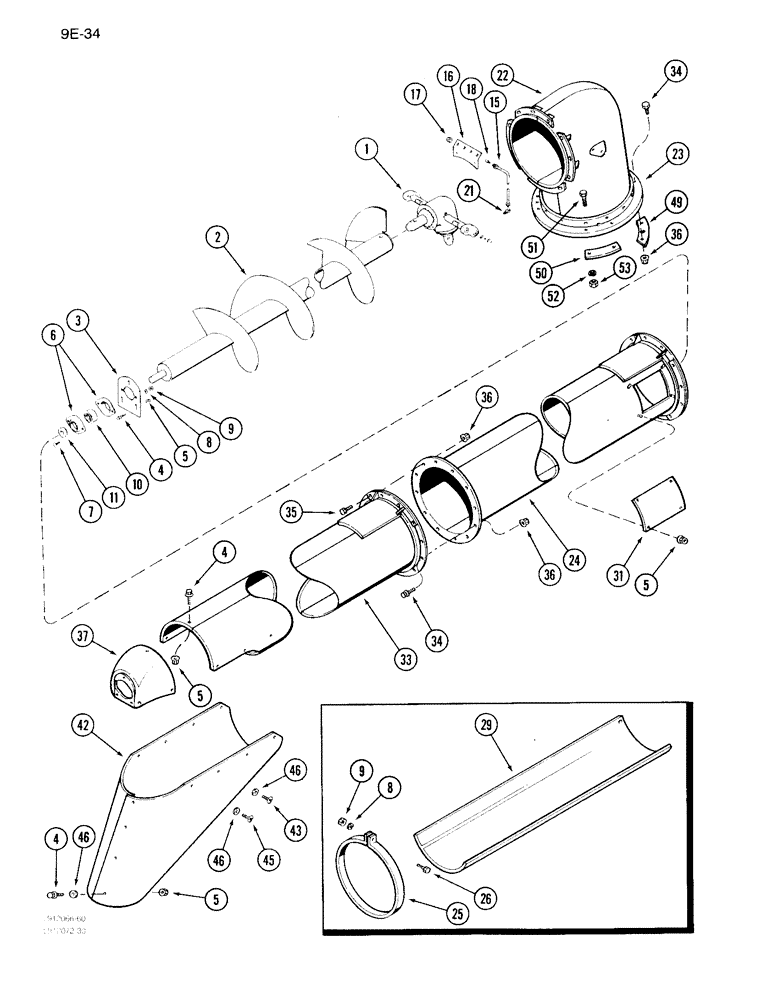

Запчасти Case IH 1640 (9E-34) - UNLOADER, UPPER AUGER AND TUBE (17) - GRAIN TANK & UNLOADER

1

REF

INSTRUCTION

HOUSING ASSEMBLY - unloader upper gear (See Figure 9E-44)

1шт.

2

1317933C1

AUGER

- unloader, 136 inch

1шт.

Prior to P.I.N. JJC0097103.

1шт.

2

1317935C1

AUGER

- unloader, 172 inch

1шт.

Prior to P.I.N. JJC0097103.

1шт.

2

1989215C1

AUGER

- unloader, 136 inch

1шт.

P.I.N. JJC0097103 and After.

1шт.

2

1347499C1

AUGER

- unloader, 172 inch

1шт.

P.I.N. JJC0097103 and After.

1шт.

3

182838C1

SUPPORT

- outer bearing

1шт.

4

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

6

F9417

FLANGE

- outer bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - unloader outer

1шт.

11

564853R11

COLLAR

- outer bearing

1шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lubrication 0.14" ID x 22.00"

2шт.

15

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

15

937782R92

HOSE,3.02mm ID x 787mm L

Lubrication 3.56 mm ID x 787.00 mm

1шт.

16

1347449C1

SUPPORT

- lubrication hose

1шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- hose adapter

4шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

4шт.

21

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - adapter lubrication

4шт.

22

193417C94

ELBOW

- unloader, Includes: Ref. 23

1шт.

23

193418C3

FLANGE

- unloader elbow

1шт.

24

1317738C1

TUBE,2285 mm Length

- unloader, front, 89.96 in.

1шт.

24

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, front, perforated, 89.96 in.

1шт.

25

178166C1

CLAMP

- tube retaining

4шт.

26

185856C1

ADJUSTMENT SCREW

BOLT - hex special, 5/16 NC x 2 inch, full thread

4шт.

29

178165C2

COVER

- auger tube

1шт.

31

178158C1

PLATE

- front tube inspection

1шт.

33

1317734C2

TUBE

- unloader, rear (136 inch)

1шт.

33

1317783C2

TUBE

- unloader, rear, 82.47 in.

1шт.

34

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

1шт.

35

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

37

182837C2

CAP

- rear unloader tube

1шт.

42

1321150C1

SPOUT, DISCHARGE

DOWN SPOUT - unloader tube

1шт.

43

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

45

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT - slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

46

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16шт.

47

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

49

186657C2

SUPPORT

- front keeper

1шт.

50

193472C2

PLATE

BAR - unloader tube keeper

1шт.

51

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

52

492-11038

LOCK WASHER,3/8"

2шт.

53

425-106

NUT,3/8"-16, Cl 5

2шт.
