Запчасти Case IH 1640 (9E-30) - LOWER GRAIN TANK UNLOADER HOUSING, PRIOR TO S/N JJC0035422 (17) - GRAIN TANK & UNLOADER

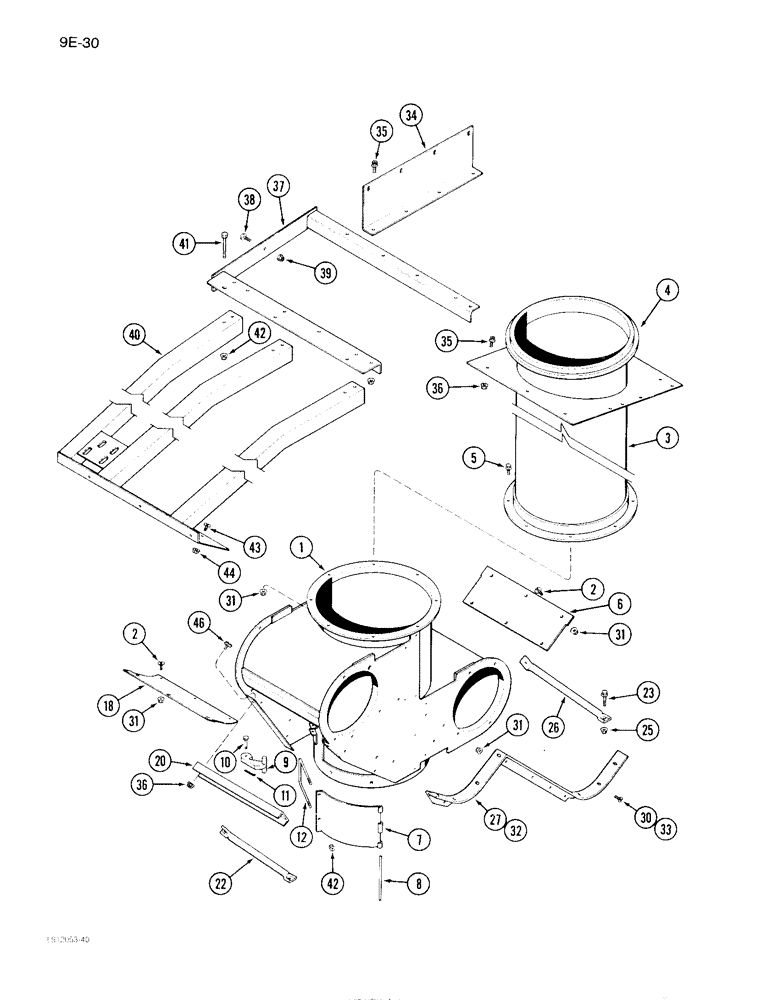

Схема запчастей Case IH 1640 - (9E-30) - LOWER GRAIN TANK UNLOADER HOUSING, PRIOR TO S/N JJC0035422 (17) - GRAIN TANK & UNLOADER
30
35
36
35
2
3
3
25
11
1
4
23
42
26
31
31
5
33
3
16
46
42
20
31
2
41
8
12
22
31
36
7
6
43
39
44
37
34
38
10
40
2

Артикул

Название

Примечание

Количество

1

192475C3

HOUSING

- lower, unloader

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

192830C92

TUBE

- auger, vertical, Includes: Ref. 4

1шт.

4

178134C2

RING

- upper, tube

1шт.

5

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

8шт.

6

191087C1

PLATE

COVER - front, bottom

1шт.

7

1970539C1

FLAP

DOOR - auger, lower (With decal)

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot, door

1шт.

9

155909C1

LATCH

- door

1шт.

10

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U-type, door

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

18

191110C1

COVER

COVER - rear, bottom

1шт.

20

192834C1

CHANNEL

- support

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 x 3/4 inch

2шт.

22

191112C1

ROD

SUPPORT - rear, housing

1шт.

23

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW - hex flange, 3/8 NC x 1-1/2 inch

2шт.

25

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

26

191111C1

ROD

SUPPORT - front, housing

1шт.

27

192828C1

SUPPORT

- housing, left

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

31

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

40шт.

32

192829C1

SUPPORT

- housing, right

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

34

191189C1

SUPPORT

BRACKET - support

1шт.

35

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

11шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

11шт.

37

1327543C2

SUPPORT

- vertical auger

1шт.

38

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- slotted truss head special, 3/8 NC x 1 inch

3шт.

39

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

40

1327507C1

SUPPORT

- cylinder, unloader

1шт.

41

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

6шт.

42

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

43

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

7шт.

44

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

Выбрано товаров: 36
