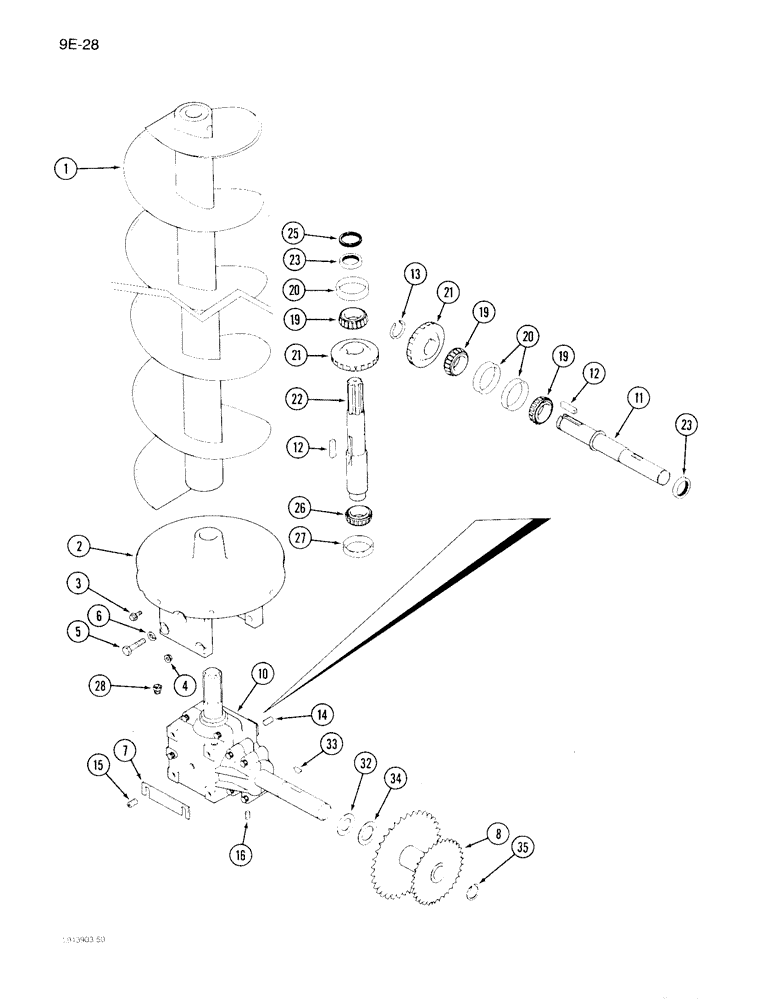

Запчасти Case IH 1640 (9E-28) - LOWER GRAIN TANK UNLOADER AUGER, P.I.N. JJC0097103 AND AFTER (17) - GRAIN TANK & UNLOADER

1

1347389C1

AUGER

- unloader, vertical

1шт.

1

1347341C1

AUGER

- unloader, vertical

1шт.

Only for service of combines retrofitted with new unloader gearcase assembly prior to P.I.N. JJC0097103.

1шт.

1989350C1

CASE ASSY.

GEAR BOX ASSEMBLY - vertical unloader, Includes: Ref. 2 - 28

1шт.

2

1347177C1

SUPPORT

- gear box

1шт.

3

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

7шт.

3

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

9шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

7

1347337C1

SHIM

- lower gear

1шт.

8

1347402C1

SPROCKET

ASSEMBLY - driven (33 and 57 teeth)

1шт.

8

1347319C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - driven (33 and 43 teeth)

1шт.

Only for service of combines retrofitted with new unloader gearcase assembly prior to P.I.N. JJC0097103.

1шт.

1347336C1

GEARBOX ASSY

CASE ASSEMBLY - gear box, Includes: Ref. 10 - 28

1шт.

1347336C2R

REMAN-HOUSING

1640 (S/N JJC0034705 & AFTER), P.I.N. JJC0097103 AND AFTER (1/86-12/92), Reman For New P/N 1347336C1

1шт.

1347336C2C

CORE-TRANSMISSION

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

CASE - gear box

1шт.

11

1989462C1

SHAFT

- auger, input (1-1/2 inch OD)

1шт.

12

1989564C1

KEY

- square parallel, 3/8 inch

2шт.

13

1989563C1

SNAP RING

RING - snap, shaft

1шт.

14

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

15

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - hex socket, 1/2 inch PT, magnetic

1шт.

16

221-671

DRAIN PLUG,Hex Soc, 1/4" NPT

PLUG, , Magnetic Hex Soc, 1/4" NPT

1шт.

19

779103R91

ROLLER BEARING

CONE- bearing, thrust

3шт.

20

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP - bearing, inner

3шт.

21

1989464C1

PINION

GEAR - drive, auger

2шт.

22

1989463C1

SHAFT

- auger, output (1-3/8 inch OD)

1шт.

23

1989581C1

SEAL,38.08mm ID x 50.08mm OD x 7.95mm Thk

- shaft

2шт.

61-33836

HEX SOC SCREW,3/8 - 16 x 2-1/4"

SCREW - hex socket head, 3/8 NC x 2-1/4 inch

9шт.

25

1347432C2

SEAL,38.08mm ID x 42mm OD x 7.5mm Thk

- oil, bearing

2шт.

26

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

CONE ASSEMBLY - bearing

1шт.

27

ST991

BEARING CUP

CUP - bearing

1шт.

28

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE - pressure relief, 1/8 inch PT

1шт.

32

1327731C1

THRUST WASHER

WASHER - flat special, 1-13/32 x 2-1/4 x 1/8 inch

7шт.

33

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

34

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

3шт.

162679C1

WASHER

WASHER - spacer, 1-13/32 x 2 x 1/16 inch

3шт.

35

A21619

CIRCLIP

RING - input shaft bearing, retaining

1шт.
