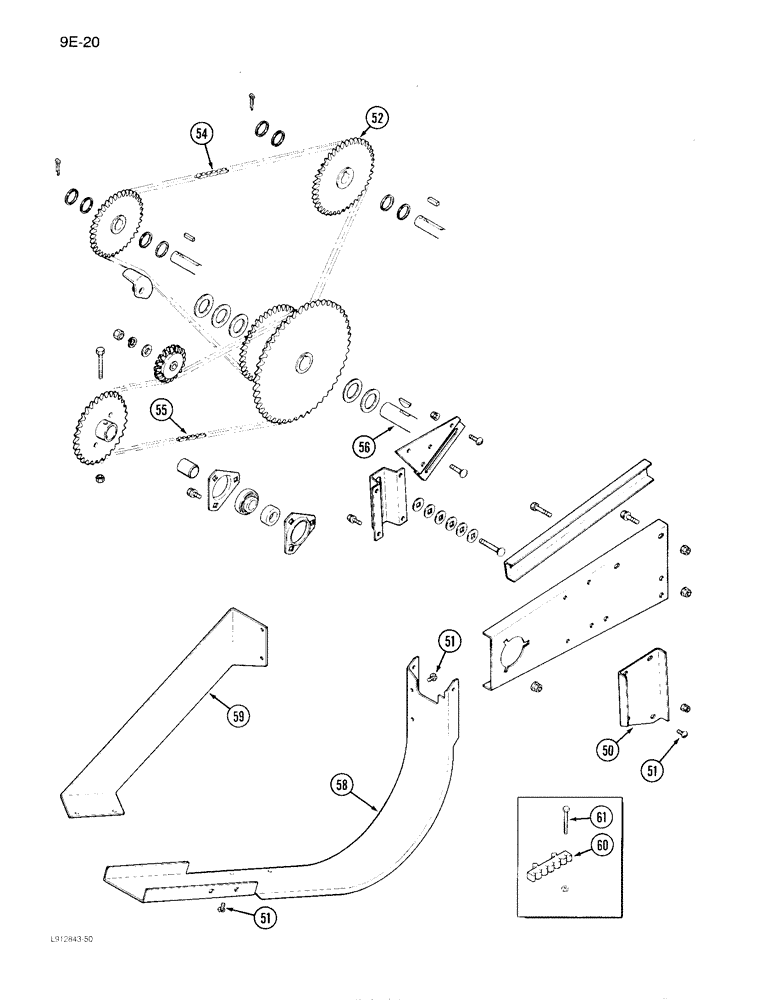

Запчасти Case IH 1640 (9E-20) - GRAIN TANK UNLOADER CHAIN DRIVE, PRIOR TO P.I.N. JJC0097103 (CONTD) (17) - GRAIN TANK & UNLOADER

50

1302435C2

SUPPORT

- shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

8шт.

52

192925C1

SPROCKET

- grain auger (37 tooth)

1шт.

54

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

Prior to P.I.N. JJC0097103 use 157 links of No. 40 chain and (1)connecting link 1301D.

1шт.

P.I.N. JJC0035422 through JJC0097103, use 161 links of No. 40 chain and (1) connecting link 1301D.

1шт.

55

REF

INSTRUCTION

CHAIN ASSEMBLY - drive

1шт.

Use 133 links of No. 50 chain and (1) connecting link 1310D.

1шт.

56

REF

INSTRUCTION

SHAFT - driven, gear box (See Figure 9E-22)

1шт.

58

1302434C2

GUARD

SHIELD - drive, unloader

1шт.

59

183351C1

PLATE

- side

1шт.

60

3102155R1

HOLDER

- shear bolt

1шт.

61

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

- hex, 5/16 NC x 2-3/4 inch, Grade 8

3шт.
