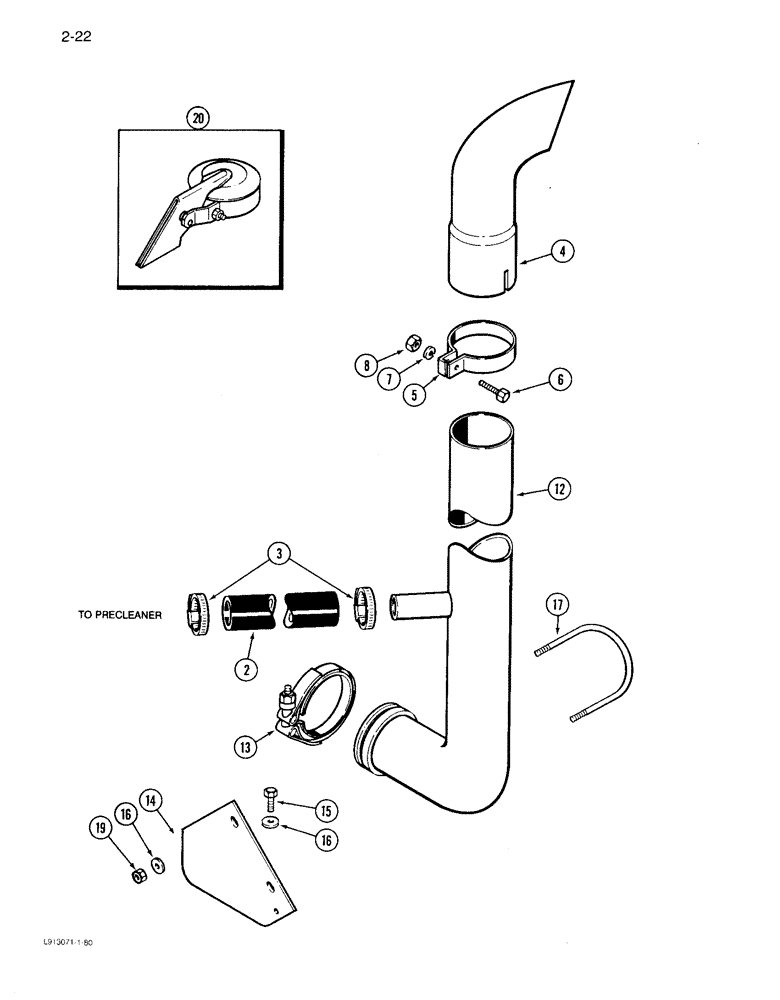

Запчасти Case IH 1640 (2-22) - EXHAUST SYSTEM (01) - ENGINE

2

NSS

NOT SOLD SEPARAT

HOSE - exhaust ejector, 380 mm long (Order 407001R2, Serial Range: cut-length)

1шт.

3

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose retaining

2шт.

4

1275833C1

TUBE

PIPE - exhaust elbow

1шт.

5

1321280C1

CLAMP

- exhaust pipe elbow

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

1977011C3

TUBE,88.9 mm OD, 620, 197.4 mm Length

- aspirator

1шт.

13

A170467

CLAMP,72mm ID

- tube retaining

1шт.

14

84642C2

BRACKET

- tube support

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

16

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

4шт.

17

S93558

U-BOLT

- 3/8 inch NC

1шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

20

A19795

CAP

- weather

1шт.
