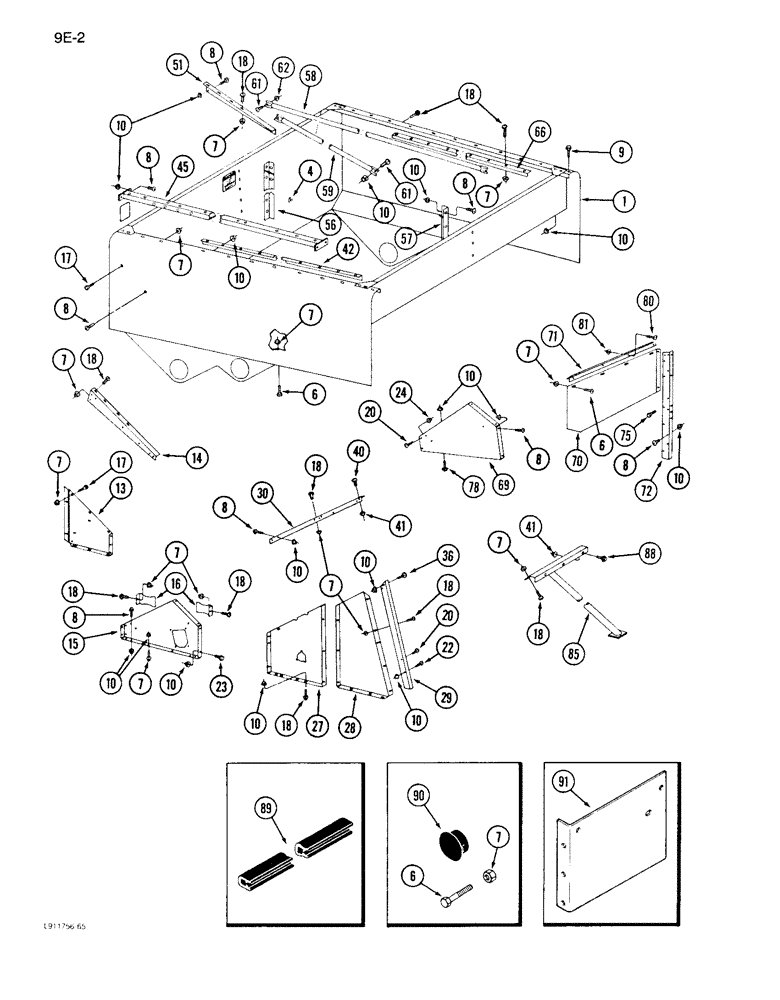

Запчасти Case IH 1640 (9E-02) - GRAIN TANK (17) - GRAIN TANK & UNLOADER

1

1321917C92

TANK

ASSEMBLY - grain, with decals

1шт.

4

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

3шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

1шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch

1шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head. 3/8 NC x 1 inch

3шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

1шт.

13

192770C3

COVER

SUPPORT - grain tank, left front

1шт.

14

192768C2

SUPPORT

- grain tank, left

1шт.

15

192771C2

SUPPORT

- grain tank, center

1шт.

16

193531C1

SUPPORT

- filler

4шт.

17

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

6шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted head, 5/16 NC x 3/4 inch

1шт.

20

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

22

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

2шт.

23

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT - slotted truss, 5/16 NC x 1 inch

2шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

2шт.

27

1347380C1

COVER

SUPPORT - grain tank, rear (Replaces 193471C1)

1шт.

28

192777C1

SUPPORT

- grain tank, rear

1шт.

29

192775C1

SUPPORT

- grain tank, rear

1шт.

30

192773C1

ANGLE

BRACKET - grain tank, rear bottom

1шт.

36

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

40

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

41

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

3шт.

42

195397C3

ANGLE

- tank top, left

1шт.

45

192855C1

SUPPORT

- grain tank

1шт.

51

192769C2

SUPPORT

- grain tank, right

1шт.

56

192765C1

SUPPORT

ANGLE - grain tank tie, front (Replaces 188417C1)

1шт.

57

181682C2

SUPPORT

ANGLE - grain tank tie, rear (Replaces 1329777C1)

1шт.

58

192767C2

STEM

ROD - grain tank

1шт.

59

188414C3

ROD

- grain tank

1шт.

61

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch

1шт.

66

195398C3

SUPPORT

ANGLE - grain tank, top right

1шт.

69

192772C2

SUPPORT

- grain tank, right center

1шт.

70

192474C1

SUPPORT

- grain tank, right

1шт.

71

192774C1

SUPPORT

- grain tank, rear bottom

1шт.

72

181392C2

SUPPORT

- grain tank, right rear

1шт.

75

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

16шт.

78

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

80

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

81

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

1шт.

85

186118C1

SUPPORT ASSY.

SUPPORT - grain tank rear

1шт.

88

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

2шт.

89

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

SEAL - grain tank (Order 196707C1, Serial Range: cut-length)

2шт.

90

1345347C1

PLUG

- button, 7 mm diameter hole

1шт.

Plug no longer used in this application. For Service order 632226R1 bolt and 938017R1 nut.Plug no longer used in this application. For Service order 632226R1 bolt and 938017R1 nut.

1шт.

90

1345348C1

PLUG

- button, 10 mm diameter hole

1шт.

Plug no longer used in this application. For Service order 632226R1 bolt and 938017R1 nut.

1шт.

91

185105C1

SUPPORT

- separator hood sheet, right

1шт.

91

185104C1

SUPPORT

- separator hood sheet, left

1шт.
