Запчасти Case IH 1640 (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS

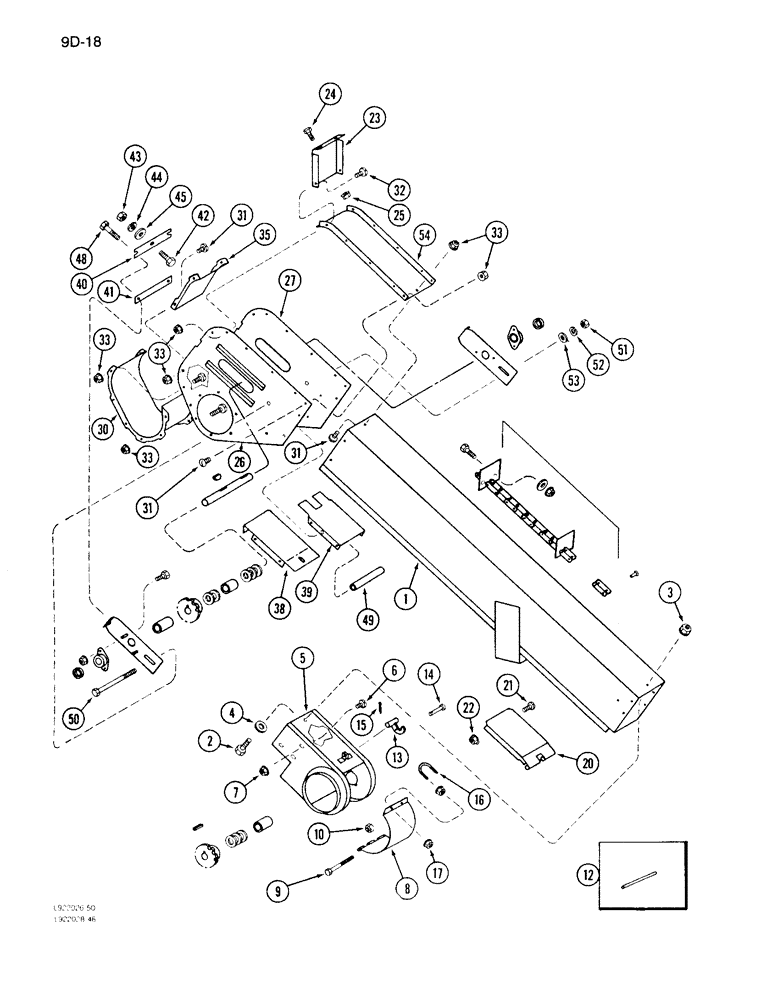

Схема запчастей Case IH 1640 - (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS
35
49
54
21
24
4
5
27
14
30
50
53
45
2
52
7
16
8
20
41
44
6
26
17
31
3
45
22
42
40
33
31
25
10
32
23
15
33
48
13
33
51
33
12
1
9
31
38
39

Артикул

Название

Примечание

Количество

1

191778C2

ELEVATOR TUBE,85.08" Length

HOUSING - elevator

1шт.

2

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

2шт.

4

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

8шт.

5

191771C1

BOOT

ASSEMBLY - elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock

8шт.

8

156910C1

DOOR

- boot (Not perforated)

1шт.

8

174193C1

DOOR

- boot (Perforated)

1шт.

9

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

10

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

12

U17024

PIN

- door (If equipped)

1шт.

13

155909C1

LATCH

- door

1шт.

14

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT - hex lock, 1/4 inch NC

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

23

195201C1

SUPPORT

- upper

2шт.

24

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

26

181366C1

SIDE PLATE

SIDE - head, left

1шт.

27

181367C1

SIDE PLATE

SIDE - head, right

1шт.

30

188119C1

TROUGH

- head

1шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - slotted truss head, 5/16 NC x 1/2 inch

20шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

11шт.

33

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

35шт.

35

191776C1

COVER

COVER - head

1шт.

38

191782C1

SUPPORT

BOTTOM - head

1шт.

39

181327C1

BOTTOM

- head

1шт.

40

181376C1

CLAMP

- tightener

1шт.

41

181375C1

SUPPORT

TIGHTENER - bolt

1шт.

42

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

43

425-106

NUT,3/8"-16, Cl 5

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

48

667486R1

BOLT

BOLT - tightener bar

2шт.

49

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Sprocket 1/4" Pipe x 5 13/16"

1шт.

50

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, Grade 2

1шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

53

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

54

191783C1

TOP COVER

COVER - top, head

1шт.

Выбрано товаров: 45
