Запчасти Case IH 1640 (9D-14) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

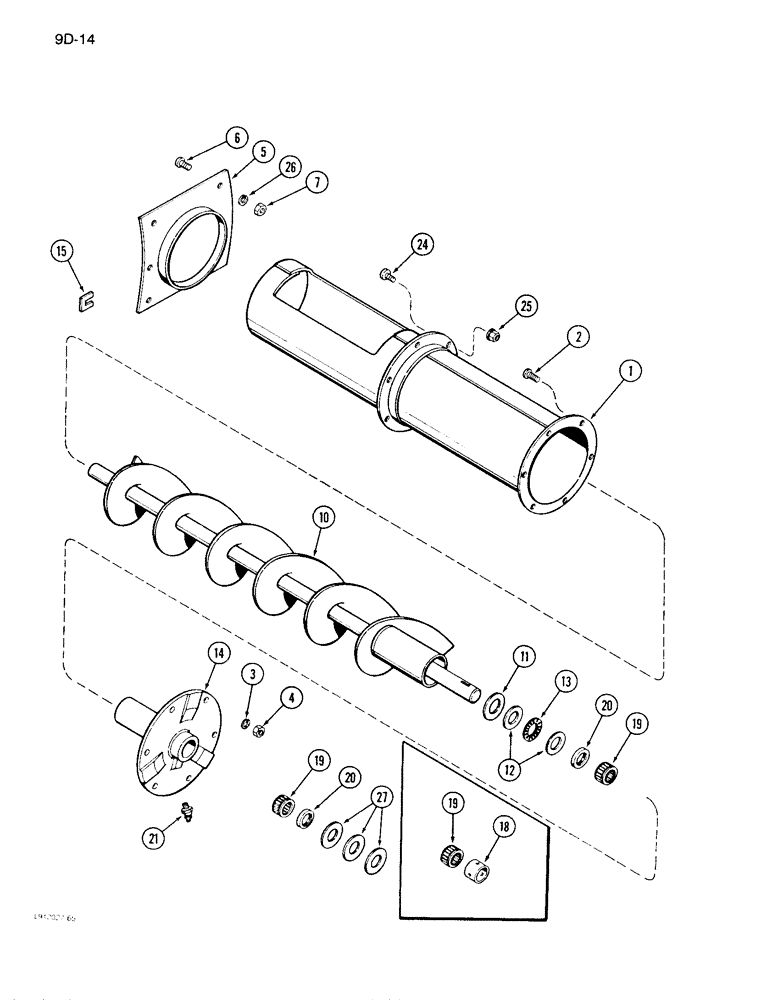

Схема запчастей Case IH 1640 - (9D-14) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS
5
20
19
7
27
13
18
21
6
25
2
15
19
14
20
1
12
25
3
24
19
10
1
4

Артикул

Название

Примечание

Количество

1

185225C1

TUBE,6.56" Length

ASSEMBLY - delivery auger

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

5

186700C1

COVER

FLANGE - tube

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss head, 5/16 NC x 3/4 inch

6шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

10

193225C1

AUGER

- delivery

1шт.

11

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

12

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust, auger

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Auger

1шт.

14

1324840C1

BEARING HOUSING,36.525 mm ID x 50 mm OD x 43, 160 mm

- bearing

1шт.

14

192783C1

BEARING HOUSING,2" ID x 8" OD x 6.3"

HUB - bearing (If equipped, Order 1324840C1)

1шт.

15

151670C1

SHIM

SHIM - washer

4шт.

18

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

- bearing hub (Use with 192783C1 hub)

2шт.

19

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING - auger hub (Use with 1324840C1 hub)

2шт.

20

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING - auger hub (Use with 192783C1 hub)

2шт.

21

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

- hub bearing

2шт.

22

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - lubrication, 45 degree, 1/4 inch taper drive

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

6шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

27

495-81076

WASHER,26.19mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

Выбрано товаров: 23
